YC0017BA - Quectel

Description: Antennas Embedded, 698-960,1710-3800, LTE (4G), PCB, -, -, SMD, 26 x 8 x 3

Download YC0017BA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

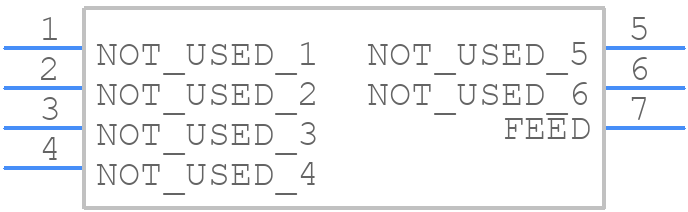

YC0017BA - Quectel - PCB symbol
click to zoom
PCB Footprints
YC0017BA - Quectel PCB footprint - Other - Other - YC0017BA-1
click to zoom
3D Models
YC0017BA - Quectel - 3D model - Other - YC0017BA-1
click to zoom

YC0017BA Details

  • Manufacturer Part Number:

    YC0017BA

  • Part Life Cycle Code:

    Contact Manufacturer

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Quectel Wireless Solutions Co Ltd

  • Additional Feature:

    IT CAN ALSO OPERATE AT 1710-2700 MHZ AND 3400-3800 MHZ

  • Application:

    2G/3G/4G/LPWA/LTE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    7

  • Omnidirectional:

    NO

  • Operating Frequency-Max:

    960 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Polarization:

    LINEAR

  • RF/Microwave Device Type:

    ANTENNA-OTHER

  • Surface Mount:

    YES

  • VSWR-Max:

    4

YC0017BA Frequently Asked Questions (FAQs)

  • The maximum power consumption of YC0017BA in idle mode is around 20mA, but it can be optimized to around 10mA with proper configuration and firmware optimization.
  • YC0017BA can handle simultaneous GPS and cellular connectivity, but it requires careful configuration and optimization to avoid interference between the two. Quectel provides guidelines and recommendations for optimal configuration.
  • The maximum operating temperature range for YC0017BA is -40°C to 85°C, but it's recommended to operate within -20°C to 70°C for optimal performance and reliability.
  • Yes, YC0017BA supports multi-band configuration, allowing it to operate on different frequency bands depending on the region and carrier requirements.
  • YC0017BA supports Over-The-Air (OTA) firmware updates, allowing for remote maintenance and updates. Quectel also provides tools and guidelines for firmware updates and maintenance.
