YFS-20-03-H-05-SB-K - SAMTEC

Description: 100 Position Connector Array, Female Sockets Surface Mount Gold 5row and 20column

Download YFS-20-03-H-05-SB-K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
YFS-20-03-H-05-SB-K - SAMTEC - PCB symbol
click to zoom
PCB Footprints

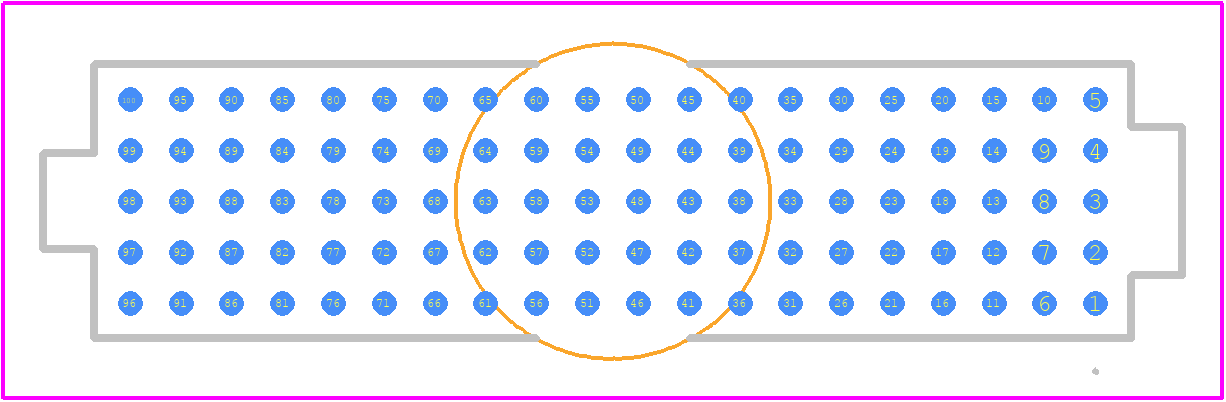

YFS-20-03-H-05-SB-K - SAMTEC PCB footprint - Other - Other - YFS-20-03-H-05-SB-K-2
click to zoom
3D Models
YFS-20-03-H-05-SB-K - SAMTEC - 3D model - Other - YFS-20-03-H-05-SB-K-2
click to zoom

YFS-20-03-H-05-SB-K Details

  • Manufacturer Part Number:

    YFS-20-03-H-05-SB-K

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    5

  • Additional Feature:

    LOW PROFILE; TIGER EYE CONTACT

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Material:

    PHOSPHOR BRONZE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    BGA100

  • Housing Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Number of Contacts:

    100

YFS-20-03-H-05-SB-K Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure mating and prevent damage to the connector.
  • Yes, the YFS-20-03-H-05-SB-K connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and screw torque procedures to ensure reliable performance.
  • The operating temperature range for the YFS-20-03-H-05-SB-K connector is -55°C to 125°C (-69°F to 257°F). However, it's essential to consider the temperature rating of the specific application and ensure the connector is used within its recommended operating range.
  • Yes, the YFS-20-03-H-05-SB-K connector is compatible with lead-free soldering processes. Samtec Inc. recommends following the recommended soldering profile and procedures to ensure reliable assembly.
  • The YFS-20-03-H-05-SB-K connector is rated for a minimum of 500 mating cycles. However, the actual mating cycle life may vary depending on the application, usage, and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

YFS-20-03-H-05-SB-K Overview

Use the download button to access the YFS-20-03-H-05-SB-K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like YFS-2, or try a keyword search, such as Sockets and Chip Carriers
