YTS-105-01-S-Q footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

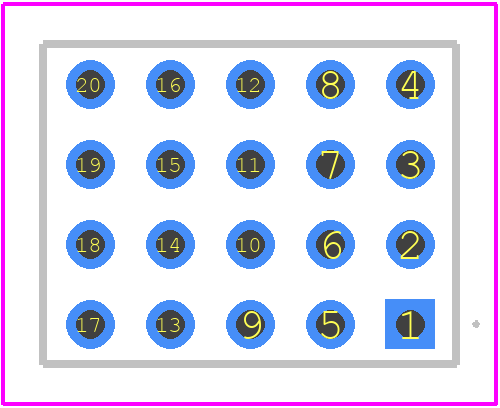

YTS-105-01-S-Q - SAMTEC PCB footprint - Other - Other - YTS-105-01-S-Q-2

click to zoom

3D Models

YTS-105-01-S-Q - SAMTEC - 3D model - Other - YTS-105-01-S-Q-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for YTS-105-01-S-Q
Part Number YTS-105-01-S-Q
Manufacturer SAMTEC
Pin Count 20
Part Category Connector
Package Category Other
Footprint Name Other - YTS-105-01-S-Q-2
Released Date Mar 7, 2025
Last Modified Date Mar 7, 2025 5:09 AM UTC
Pinout / Pin List Click Here (Member Only)

YTS-105-01-S-Q Details

Manufacturer Part Number:
YTS-105-01-S-Q
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 5 Days
Manufacturer:
Samtec Inc
YTEOL:
8
Body Breadth:
0.315 inch
Body Depth:
0.25 inch
Body Length:
0.405 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Design:
PREASSEM CONN
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
Filter Feature:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
Mating Contact Pitch:
0.079 inch
Mating Contact Row Spacing:
0.079 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
4
Number of Rows Loaded:
4
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2 mm
Plating Thickness:
30u inch
Reference Standard:
UL
Terminal Length:
0.09 inch
Terminal Pitch:
2 mm
Termination Type:
SOLDER
Total Number of Contacts:
20

YTS-105-01-S-Q Frequently Asked Questions (FAQs)

The recommended torque for the screws on the YTS-105-01-S-Q connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the YTS-105-01-S-Q connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can withstand vibrations up to 15 g (147 m/s²) in the frequency range of 10-2000 Hz.
Yes, the YTS-105-01-S-Q connector is compatible with lead-free soldering processes. Samtec recommends using a soldering temperature of 260°C (500°F) for a maximum of 10 seconds to ensure reliable connections.
The maximum operating temperature of the YTS-105-01-S-Q connector is 125°C (257°F). However, Samtec recommends derating the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
The YTS-105-01-S-Q connector is not designed for use in humid or wet environments. It does not have any special coatings or seals to protect it from moisture. If you need a connector for use in harsh environments, you may want to consider a different product from Samtec's portfolio.

Trust Checks

Community Provided

System Verified

Community Approved

YTS-105-01-S-Q Overview

Use the download button to access the YTS-105-01-S-Q schematic symbol, PCB footprint, and 3D model.
