Z8523L16VEG footprint, schematic symbol and 3D model by LITTELFUSE

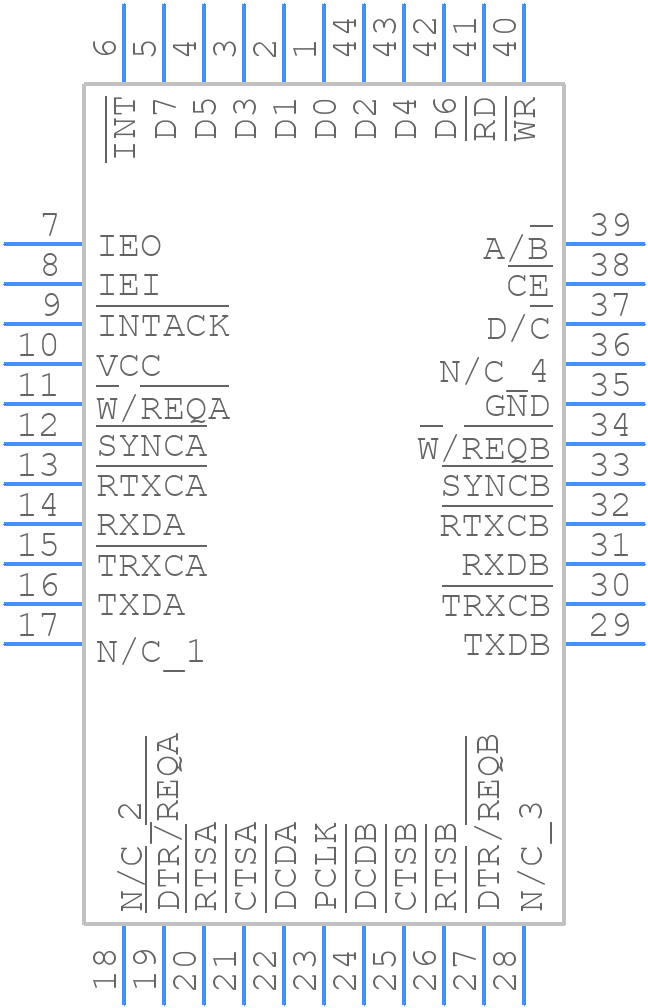

Symbol

click to zoom

PCB Footprints

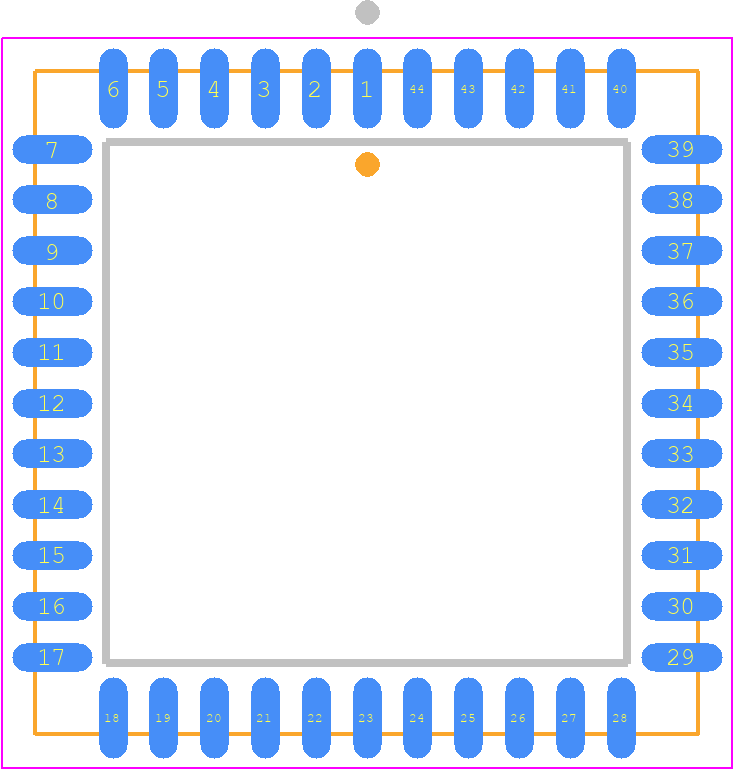

Z8523L16VEG - LITTELFUSE PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - 44-pin Plastic Leaded Chip Carrier (PLCC) package_2021

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for Z8523L16VEG
Part Number Z8523L16VEG
Manufacturer LITTELFUSE
Pin Count 44
Part Category Integrated Circuit
Package Category Plastic Leaded Chip Carrier
Footprint Name Plastic Leaded Chip Carrier - 44-pin Plastic Leaded Chip Carrier (PLCC) package_2021
Released Date Apr 14, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

Z8523L16VEG Details

Manufacturer Part Number:
Z8523L16VEG
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
GREEN, PLASTIC, LCC-44
HTS Code:
8542.31.00.30
Manufacturer:
Littelfuse Inc
YTEOL:
0
Boundary Scan:
NO
Bus Compatibility:
Z-BUS
Clock Frequency-Max:
16 MHz
Communication Protocol:
ASYNC, BIT; SYNC, HDLC; SYNC, SDLC; BISYNC
Data Encoding/Decoding Method:
NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)
External Data Bus Width:
8
JESD-30 Code:
S-PQCC-J44
Length:
16.585 mm
Low Power Mode:
NO
Number of Serial I/Os:
2
Number of Terminals:
44
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
QCCJ
Package Equivalence Code:
LDCC44,.7SQ
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Qualification Status:
Not Qualified
Seated Height-Max:
4.57 mm
Supply Current-Max:
6 mA
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
J BEND
Terminal Pitch:
1.27 mm
Terminal Position:
QUAD
Width:
16.585 mm
uPs/uCs/Peripheral ICs Type:
SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
