ZA-40AFRS-BA0001 footprint, schematic symbol and 3D model by Amphenol

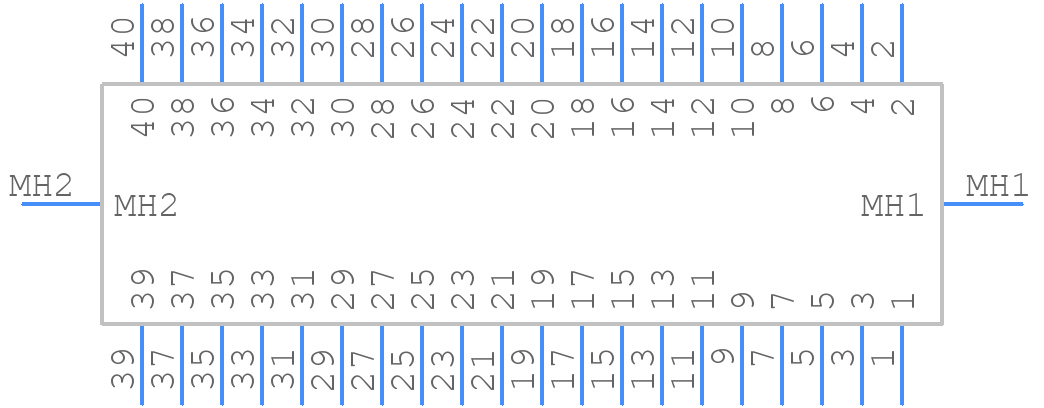

Symbol

click to zoom

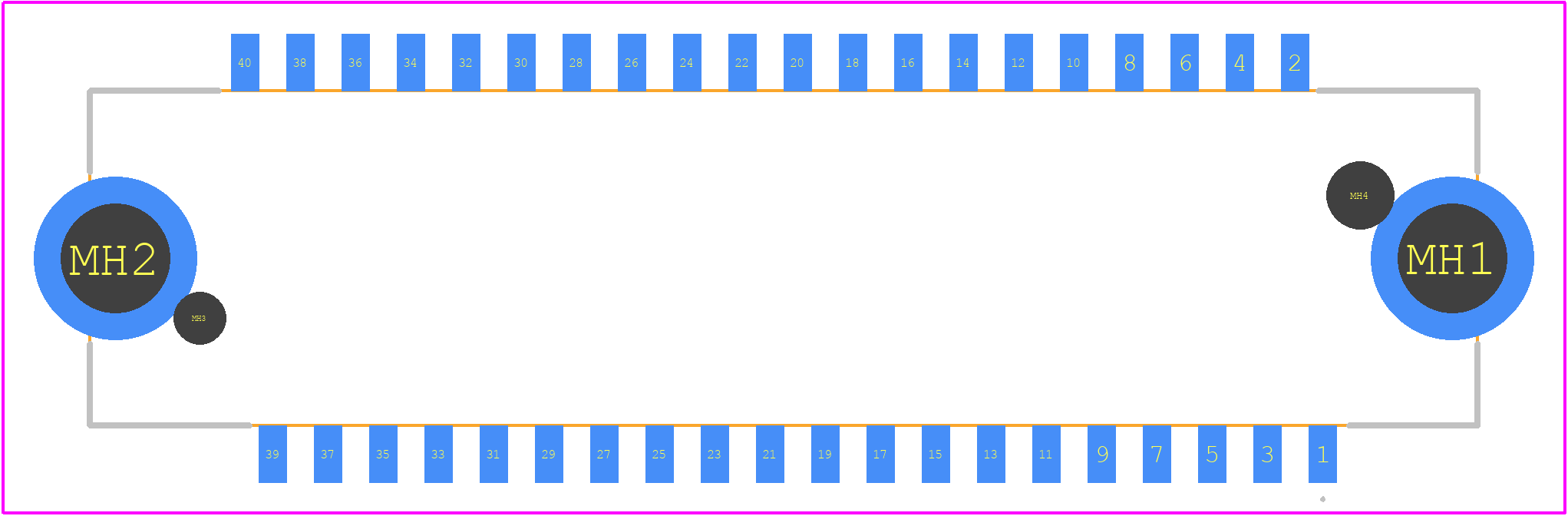

PCB Footprints

ZA-40AFRS-BA0001 - Amphenol PCB footprint - Other - Other - ZA-40AFRS-BA0001-4

click to zoom

3D Models

ZA-40AFRS-BA0001 - Amphenol - 3D model - Other - ZA-40AFRS-BA0001-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ZA-40AFRS-BA0001
Part Number ZA-40AFRS-BA0001
Manufacturer Amphenol
Pin Count 42
Part Category Connector
Package Category Other
Footprint Name Other - ZA-40AFRS-BA0001-4
Released Date Aug 16, 2023
Last Modified Date Aug 17, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

ZA-40AFRS-BA0001 Details

Manufacturer Part Number:
ZA-40AFRS-BA0001
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Factory Lead Time:
4 Weeks
Manufacturer:
Amphenol Corporation
Board Mounting Option:
PEG
Body Breadth:
0.311 inch
Body Depth:
0.449 inch
Body Length:
1.78 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
FFC/FPC CONNECTOR
Contact Gender:
FEMALE
Contact Pattern:
RECTANGULAR
Contact Resistance:
30 mΩ
Contact Style:
COMPRESSION
Durability:
100 Cycles
Filter Feature:
NO
Insulation Resistance:
100000000 Ω
Insulator Color:
BLACK
Insulator Material:
POLYETHYLENE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
1
Operating Temperature-Max:
110 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
12.75 mm
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
1 A
Terminal Pitch:
1.8 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
40

ZA-40AFRS-BA0001 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the ZA-40AFRS-BA0001 is designed to withstand high-vibration environments. The connector's rugged construction and secure screw terminals ensure reliable connections even in harsh conditions.
Yes, the ZA-40AFRS-BA0001 is designed for outdoor use and can operate in a wide temperature range (-40°C to 125°C). The connector's materials and construction provide excellent resistance to moisture, humidity, and environmental stress.
The ZA-40AFRS-BA0001 can accommodate wire sizes up to 16 AWG (1.31 mm²). It's essential to ensure that the wire size is compatible with the connector's terminals to maintain reliable connections.
Yes, the ZA-40AFRS-BA0001 is designed to operate in high-temperature environments up to 125°C. However, it's essential to ensure that the connector is used within its specified temperature range to maintain its performance and reliability.

Trust Checks

Community Provided

System Verified

Community Approved

ZA-40AFRS-BA0001 Overview

Use the download button to access the ZA-40AFRS-BA0001 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ZA-40, or try a keyword search, such as Headers and Edge Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
