ZA9672-BED footprint, schematic symbol and 3D model by COILCRAFT

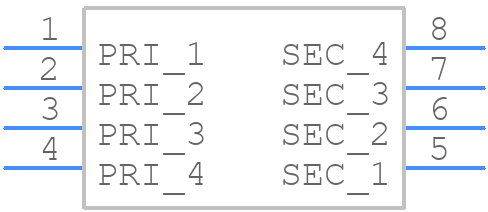

Symbol

click to zoom

PCB Footprints

ZA9672-BED - COILCRAFT PCB footprint - Other - Other - ZA9672-BED-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ZA9672-BED
Part Number ZA9672-BED
Manufacturer COILCRAFT
Pin Count 8
Part Category Transformer
Package Category Other
Footprint Name Other - ZA9672-BED-1
Released Date Aug 2, 2023
Last Modified Date Aug 3, 2023 10:01 AM UTC
Pinout / Pin List Click Here (Member Only)

ZA9672-BED Details

Manufacturer Part Number:
ZA9672-BED
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
6.33
Additional Feature:
HEIGHT AND LENGTH DIMENSION INCLUDES TERMINAL ALSO
Approvals:
AEC-Q200
Height:
10 mm
Input Voltage-Max:
42 V
Input Voltage-Min:
4 V
JESD-609 Code:
e1
Length:
13.21 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
2
Number of Secondary Winding:
2
Operating Frequency-Max:
300 kHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
12 V
Packing Method:
TR, EMBOSSED PLASTIC, 13 INCH
Power Rating:
12 W
Primary Inductance:
7 µH
Surface Mount:
YES
Terminal Finish:
TIN SILVER COPPER
Transformer Type:
SMPS TRANSFORMER
Width:
10.92 mm

ZA9672-BED Frequently Asked Questions (FAQs)

The recommended land pattern for the ZA9672-BED is a rectangular pad with a size of 3.3 mm x 2.5 mm, with a non-solder mask defined (NSMD) pad shape.
The ZA9672-BED has a maximum operating temperature of 125°C. Ensure good airflow, and consider thermal vias or thermal pads to dissipate heat. Keep the component away from heat sources and ensure adequate clearance.
The recommended soldering profile for the ZA9672-BED is a peak temperature of 260°C, with a dwell time of 30-60 seconds above 217°C. Use a solder with a melting point above 217°C.
Yes, the ZA9672-BED is designed to withstand vibrations. However, ensure proper mounting and secure the component to the PCB to prevent movement or damage.
Consult the datasheet and application notes for the ZA9672-BED. Perform simulations and testing to validate the inductor's performance in your specific application.

Trust Checks

Community Provided

System Verified

Community Approved

ZA9672-BED Overview

Use the download button to access the ZA9672-BED schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ZA967, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
