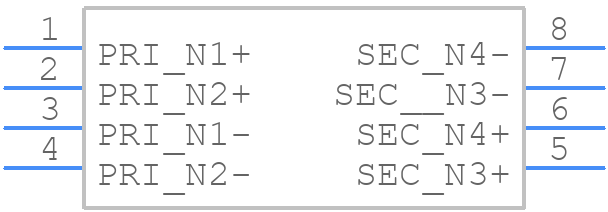

ZA9673-BED - COILCRAFT

ZA9673-BED Frequently Asked Questions (FAQs)

• What is the recommended land pattern for the ZA9673-BED?
  Coilcraft provides a recommended land pattern for the ZA9673-BED in their datasheet, which includes a suggested PCB footprint and pad layout to ensure optimal performance and reliability.
• How do I handle the ZA9673-BED's high current rating in my design?
  To handle the high current rating of the ZA9673-BED, ensure that your PCB design includes adequate copper thickness, width, and spacing to minimize resistive losses and thermal issues. Additionally, consider using thermal vias and heat sinks to dissipate heat effectively.
• What is the operating temperature range for the ZA9673-BED?
  The ZA9673-BED has an operating temperature range of -40°C to +125°C, making it suitable for a wide range of applications, including automotive, industrial, and consumer electronics.
• Is the ZA9673-BED compatible with high-frequency switching applications?
  Yes, the ZA9673-BED is designed for high-frequency switching applications, with a core material that minimizes core losses and ensures stable inductance over a wide frequency range.
• How do I select the correct inductor value for my design?
  To select the correct inductor value, consider factors such as the operating frequency, current rating, and desired inductance value. Coilcraft provides an inductor selection tool on their website to help engineers choose the optimal inductor for their design.
