ZDBE25S-OL2-146 - ITT CANNON

ZDBE25S-OL2-146 Details

• Manufacturer Part Number:

  ZDBE25S-OL2-146

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Unknown

• Factory Lead Time:

  11 Weeks

• Manufacturer:

  ITT Interconnect Solutions

• Additional Feature:

  PANEL MOUNT

• Body Breadth:

  0.494 inch

• Body Depth:

  0.236 inch

• Body Length:

  2.088 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  GOLD

• Contact Finish Termination:

  GOLD

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  15 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1000VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulator Color:

  BLACK

• Insulator Material:

  POLYETHYLENE

• JESD-609 Code:

  e4

• MIL Conformance:

  NO

• Manufacturer Series:

  ZDB

• Mating Contact Pitch:

  0.109 inch

• Mating Contact Row Spacing:

  0.112 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  THREADED

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

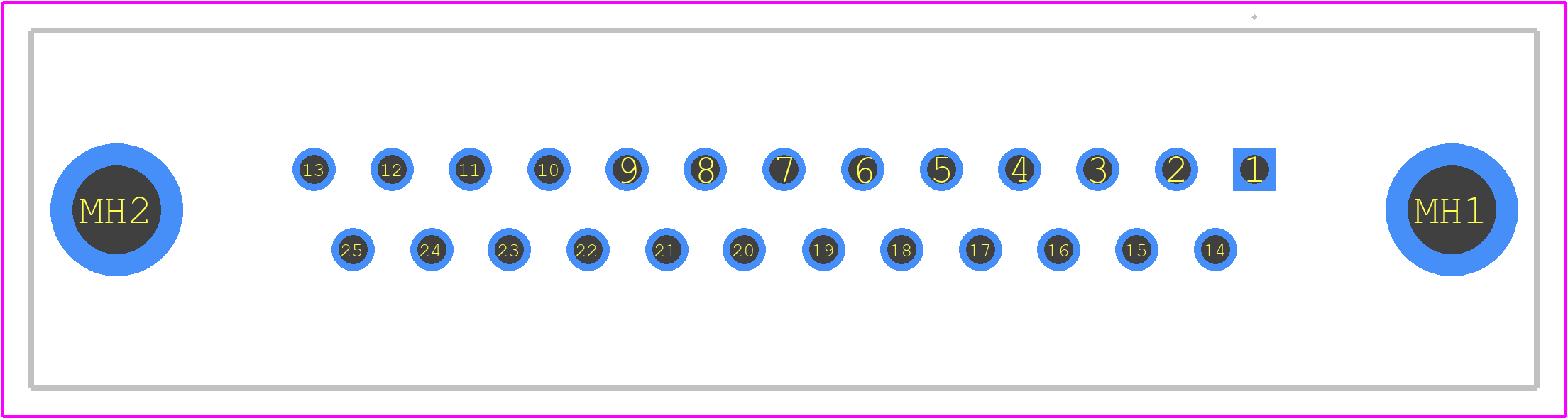

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.8448 mm

• Rated Current (Signal):

  5 A

• Reference Standard:

  UL

• Reliability:

  COMMERCIAL

• Shell Finish:

  TIN

• Shell Material:

  STEEL

• Shell Size:

  3/B

• Subcategory:

  D Type Connectors

• Terminal Length:

  0.17 inch

• Terminal Pitch:

  2.7686 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  25

• UL Flammability Code:

  94V-0
