ZE05-20DP-2H - Hirose

Description: Automotive Connectors Right Angle Receptacle, DIP Solder Tabs, 20 Position

Download ZE05-20DP-2H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

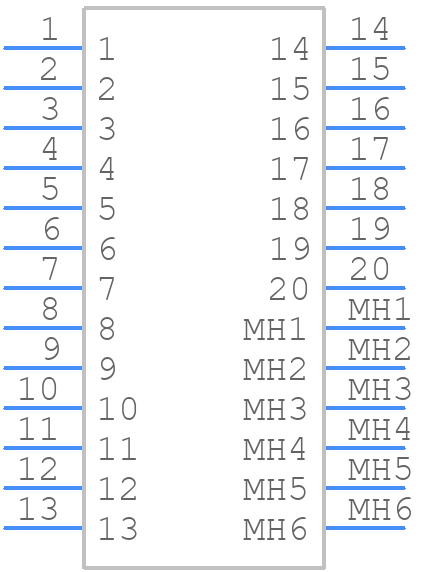

ZE05-20DP-2H - Hirose - PCB symbol
click to zoom
PCB Footprints

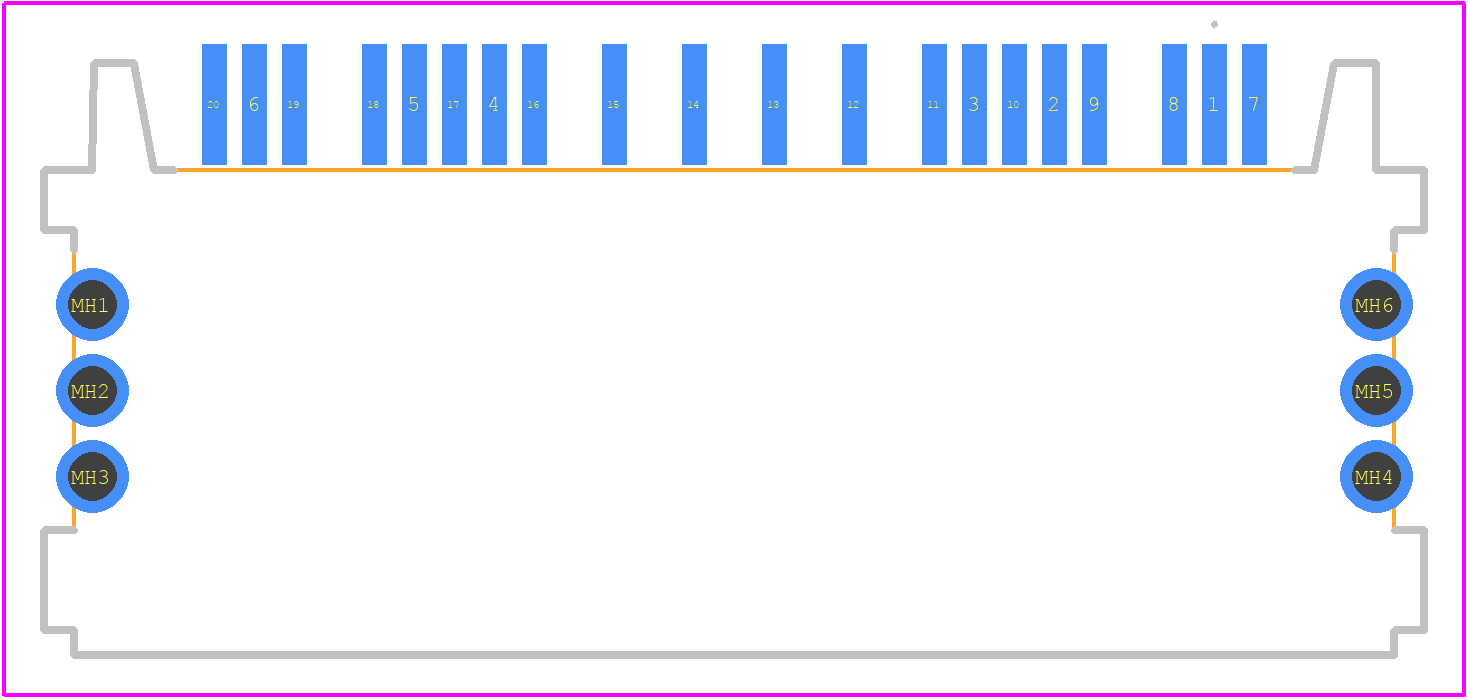

ZE05-20DP-2H - Hirose PCB footprint - Other - Other - ZE05-20DP-2H-1
click to zoom
3D Models
ZE05-20DP-2H - Hirose - 3D model - Other - ZE05-20DP-2H-1
click to zoom

ZE05-20DP-2H Details

  • Manufacturer Part Number:

    ZE05-20DP-2H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    COMBINATION LINE CONNECTOR

ZE05-20DP-2H Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the ZE05-20DP-2H connector is 0.5 N·m to 1.5 N·m.
  • Yes, the ZE05-20DP-2H connector is designed to withstand high vibrations and is suitable for applications where vibration is a concern.
  • Yes, the ZE05-20DP-2H connector is designed to operate in harsh environments, including high temperatures up to 125°C and high humidity.
  • The mating cycle life of the ZE05-20DP-2H connector is 500 cycles.
  • Yes, the ZE05-20DP-2H connector is designed to be compatible with automated assembly and inspection systems, making it suitable for high-volume production.
