The recommended mating sequence is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
Yes, the ZE05H-16DP-2H connector is designed to withstand high-vibration environments. However, it's essential to follow the recommended torque values and ensure proper mounting to prevent connector damage or disconnection.
The maximum operating temperature range for the ZE05H-16DP-2H connector is -40°C to +105°C. However, it's essential to note that the connector's performance may degrade at extreme temperatures, and derating may be necessary.
Yes, the ZE05H-16DP-2H connector is designed to be compatible with automated assembly processes, including pick-and-place machines and robotic assembly lines. However, it's essential to follow Hirose's recommended assembly guidelines and procedures.
Hirose recommends using a soft, dry brush or a lint-free cloth to remove any debris or contaminants from the connector. Avoid using harsh chemicals, solvents, or abrasive materials that may damage the connector's surface or compromise its performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZE05H-16DP-2H Overview

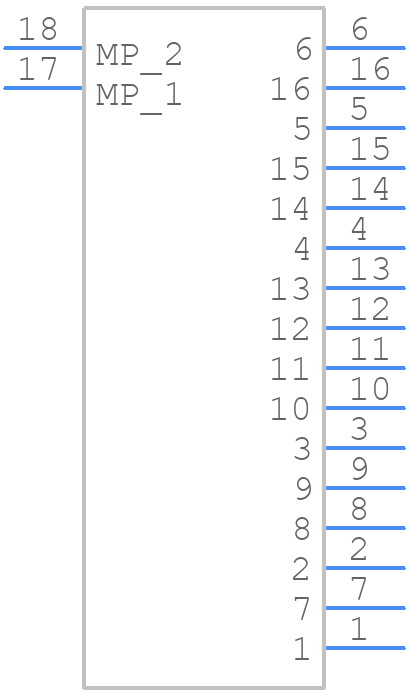

Use the download button to access the ZE05H-16DP-2H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZE05H,
or try a keyword search, such as Combination Line Connectors
