ZED-F9T-20B - u-blox

Description: ZED-F9T RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS 1.166GHz ~ 1.212GHz, 1.192GHz ~ 1.231GHz, 1.223GHz ~ 1.286GHz, 1.559GHz ~ 1.563GHz, 1.573GHz ~ 1.578GHz -128dBm 921.6kBaud Not Included 54-LGA (22x17)

Download ZED-F9T-20B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ZED-F9T-20B - u-blox - PCB symbol
click to zoom
PCB Footprints

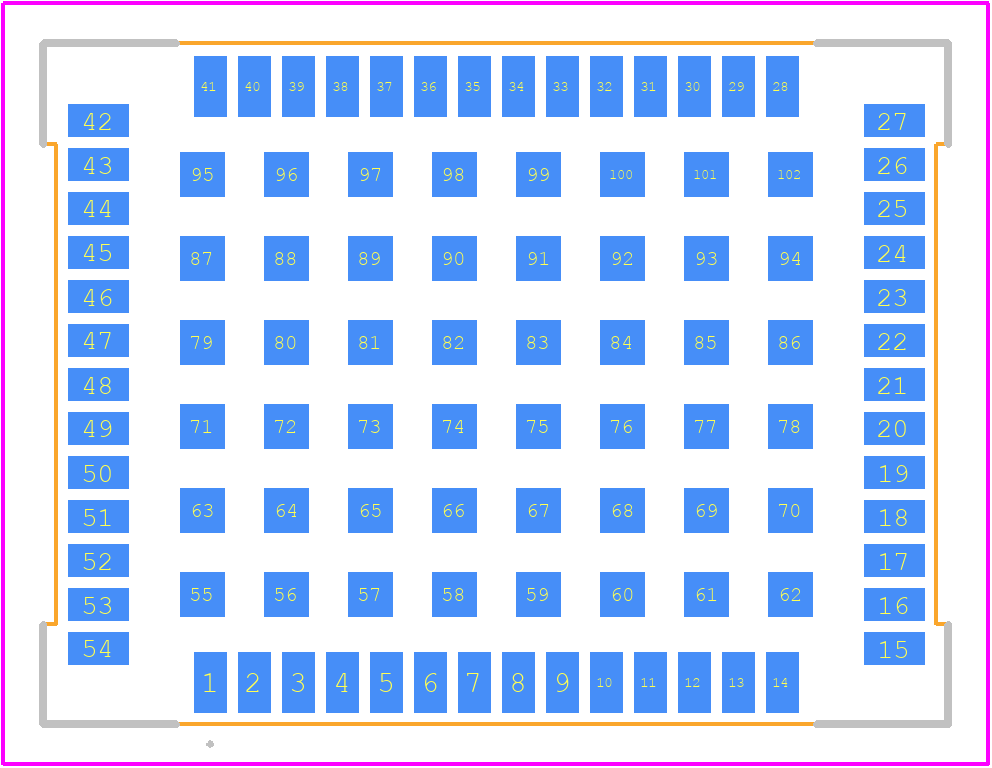

ZED-F9T-20B - u-blox PCB footprint - Other - Other - 54-SMD Module_2025-1.1
click to zoom
3D Models
ZED-F9T-20B - u-blox - 3D model - Other - 54-SMD Module_2025-1.1
click to zoom

ZED-F9T-20B Details

  • Manufacturer Part Number:

    ZED-F9T-20B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • Moisture Sensitivity Level:

    4

  • Telecom IC Type:

    GNSS Module

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZED-F9T-20B Overview

Use the download button to access the ZED-F9T-20B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZED-F, or try a keyword search, such as Other Telecom ICs
