ZF1-25-02-T-WT footprint, schematic symbol and 3D model by SAMTEC

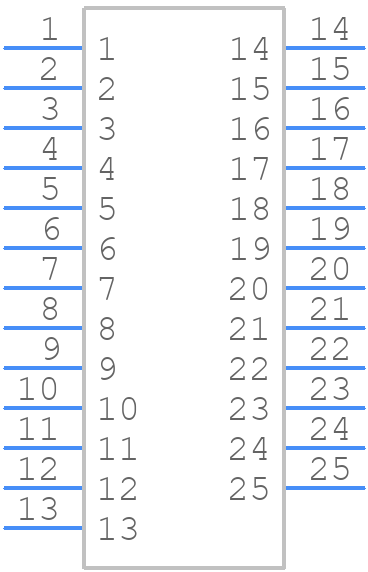

Symbol

click to zoom

PCB Footprints

ZF1-25-02-T-WT - SAMTEC PCB footprint - Other - Other - ZF1-25-XX-ZZ-WT

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ZF1-25-02-T-WT
Part Number ZF1-25-02-T-WT
Manufacturer SAMTEC
Pin Count 25
Part Category Connector
Package Category Other
Footprint Name Other - ZF1-25-XX-ZZ-WT
Released Date Jun 29, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ZF1-25-02-T-WT Details

Manufacturer Part Number:
ZF1-25-02-T-WT
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Mainland China, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 1 Day
Manufacturer:
Samtec Inc
YTEOL:
7
Body Breadth:
0.118 inch
Body Depth:
0.275 inch
Body Length:
1.251 inch
Body/Shell Style:
SOCKET
Connector Type:
FFC/FPC CONNECTOR
Contact Finish Mating:
MATTE TIN
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Resistance:
15 mΩ
Contact Style:
BELLOWED TYPE
DIN Conformance:
NO
Dielectric Withstanding Voltage:
650VAC V
Durability:
25 Cycles
Filter Feature:
NO
IEC Conformance:
NO
Insertion Force-Max:
ZIF N
Insulation Resistance:
1000000000 Ω
Insulator Color:
NATURAL
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.039 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
1
Number of Rows Loaded:
1
Option:
GENERAL PURPOSE
Rated Current (Signal):
4.3 A
Terminal Pitch:
1 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
25
UL Flammability Code:
94V-2
Withdrawl Force-Min:
ZIF N
