ZIOL2201BI1R - Renesas Electronics

Description: The ZIOL2201 is a line driver/level shifter IC that provides an HV I/O channel with a wide range of configurable system features. It addresses the physical layer of sensor/actuator systems in factory automation applications, and it is specifically designed to support the communication standard IO-Link. The output driver is a push-pull stage that reaches an RDSon of less than 6.6Ω at all operational temperatures. The configuration is stored in an on-chip EEPROM and automatically loaded into the ZIOL2201's co

Download ZIOL2201BI1R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

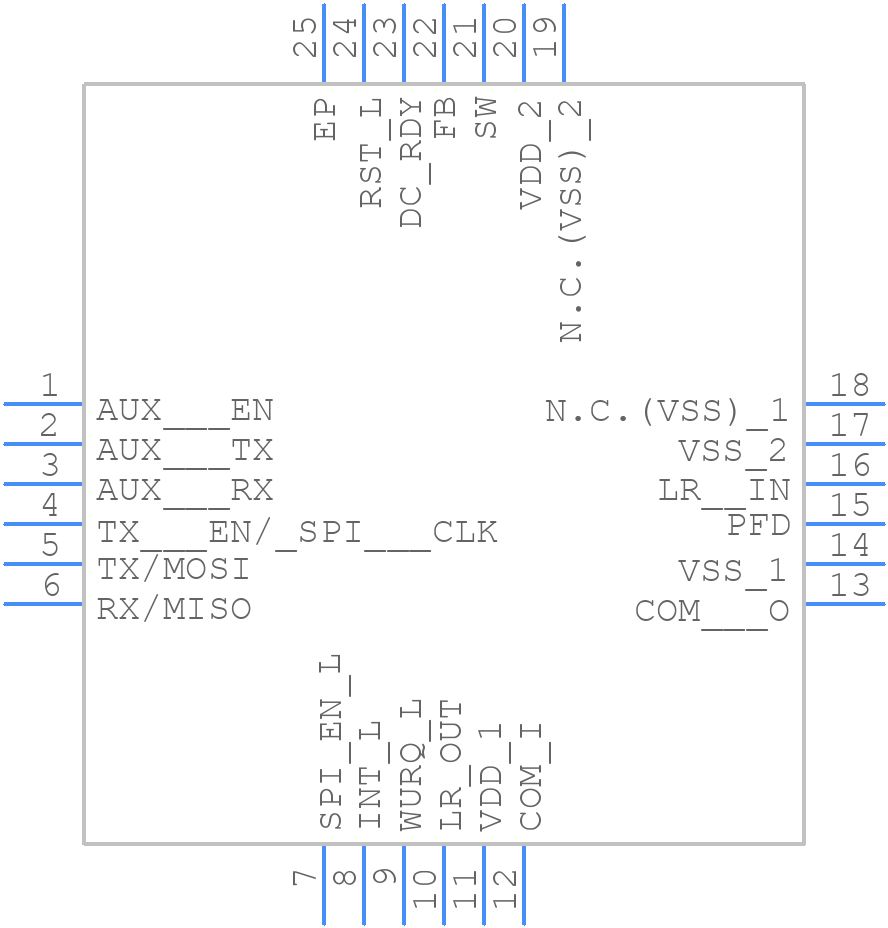

ZIOL2201BI1R - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZIOL2201BI1R - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG24
click to zoom
3D Models
ZIOL2201BI1R - Renesas Electronics - 3D model - Quad Flat No-Lead - NLG24
click to zoom

ZIOL2201BI1R Details

  • Manufacturer Part Number:

    ZIOL2201BI1R

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    NLG24

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Driver Number of Bits:

    1

  • Interface IC Type:

    LINE DRIVER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ZIOL2201BI1R Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The ZIOL2201BI1R has a built-in overcurrent protection (OCP) feature, but it's recommended to add an external OCP circuit to ensure reliable operation. Renesas provides guidance on implementing OCP in their application notes and design guides.
  • While the datasheet specifies an operating temperature range of -40°C to 105°C, it's essential to consider the derating curves and thermal management guidelines provided by Renesas to ensure reliable operation within the specified temperature range.
  • Renesas recommends using a low-ESR ceramic capacitor with a value between 4.7 μF to 10 μF, depending on the input voltage and operating frequency. The capacitor selection guide is provided in the application notes and design guides.
  • Renesas recommends a specific startup sequence to ensure proper operation, which includes powering up the input voltage, followed by the enable pin, and then the clock signal. The recommended startup sequence is detailed in the application notes and design guides.
