ZL2008EVAL1Z footprint, schematic symbol and 3D model by Renesas Electronics

ZL2008EVAL1Z - Renesas Electronics

Description: The ZL2008EVAL1Z evaluation board provides the circuitry required to evaluate the features of the ZL2008 digital power controller. The ZL2008EVAL1Z platform is a 4-layer board used to demonstrate a 15A synchronous buck converter. Sequencing, tracking, margining, plus other features can be evaluated using this board. A USB to SMBus adapter board can be used to connect the evaluation board to a PC. The PMBus command set is accessed by using Renesas' PowerNavigator™ evaluation software from a PC running Micros

Download ZL2008EVAL1Z Model

Schematic
symbols

PCB
footprints

3D
models

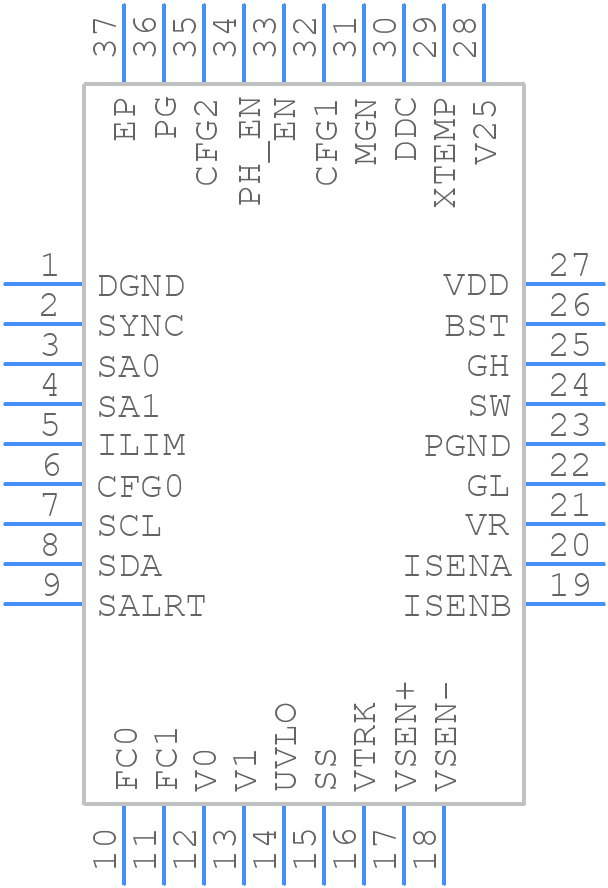

Symbol

click to zoom

PCB Footprints

ZL2008EVAL1Z - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L36.6x6C---

click to zoom

3D Models

ZL2008EVAL1Z - Renesas Electronics - 3D model - Quad Flat No-Lead - L36.6x6C---

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ZL2008EVAL1Z
Part Number ZL2008EVAL1Z
Manufacturer Renesas Electronics
Pin Count 37
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - L36.6x6C---
Released Date Mar 16, 2021
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

ZL2008EVAL1Z Details

Manufacturer Part Number:
ZL2008EVAL1Z
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ZL2008EVAL1Z Overview

Use the download button to access the ZL2008EVAL1Z schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ZL200, or try a keyword search, such as Switching Regulator or Controllers
