ZL38040LDG1 - Microsemi Corporation

Description: Audio DSPs Advanced Wideband Audio Processor

Download ZL38040LDG1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ZL38040LDG1 - Microsemi Corporation - PCB symbol
click to zoom
PCB Footprints

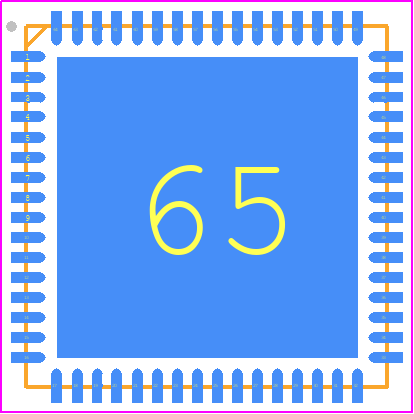

ZL38040LDG1 - Microsemi Corporation PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-64
click to zoom
3D Models
ZL38040LDG1 - Microsemi Corporation - 3D model - Quad Flat No-Lead - QFN-64
click to zoom

ZL38040LDG1 Details

  • Manufacturer Part Number:

    ZL38040LDG1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    QFN-64

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Microsemi Corporation (now Microchip)

  • Additional Feature:

    ANALOG AND DIGITALSUPPLY VOLTAGE MIN=3.135 V, NOM=3.3 V, MAX=3.465 V

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N64

  • Length:

    9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC64,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.26 V

  • Supply Voltage-Min (Vsup):

    1.14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    9 mm

ZL38040LDG1 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ZL38040LDG1 involves placing the device near the power supply, using a solid ground plane, and minimizing the length of the power traces to reduce noise and EMI.
  • To optimize the performance of the ZL38040LDG1 in a noisy environment, use a low-pass filter on the input, add a ferrite bead or a common-mode choke to the power supply, and ensure good decoupling and grounding practices.
  • The maximum allowed power supply ripple for the ZL38040LDG1 is 100mV peak-to-peak, but it's recommended to keep it below 50mV to ensure optimal performance.
  • Yes, the ZL38040LDG1 is rated for operation up to 125°C, but it's essential to ensure proper thermal management and follow the recommended thermal design guidelines to prevent overheating.
  • To troubleshoot issues with the ZL38040LDG1, start by checking the power supply, ensuring proper decoupling and grounding, and verifying the input signal integrity. Use an oscilloscope to analyze the output waveform and identify any anomalies.
