- Part Number ZL38050LDF1
- Manufacturer Microchip
- Pin Count 65
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead

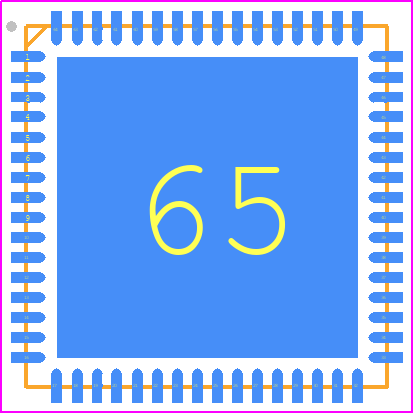

- Footprint Name Quad Flat No-Lead - ZL38050LDF1
- Released Date Oct 27, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ZL38050LDF1 Details
-
Manufacturer Part Number:
ZL38050LDF1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Pin Count:
64
-
Manufacturer Package Code:
VQFN-64
-
Country Of Origin:
Malaysia
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
8 Weeks
-
Manufacturer:
Microchip Technology Inc
-
YTEOL:
18
-
Consumer IC Type:
CONSUMER CIRCUIT
ZL38050LDF1 Frequently Asked Questions (FAQs)
-
Microchip provides a recommended PCB layout in the ZL38050LDF1 evaluation board user's guide (DS50002457A). It's essential to follow this layout to ensure proper thermal management, noise reduction, and signal integrity.
-
Microchip offers the ZL38050LDF1 Audio Development Kit (ADM00595) which includes a graphical user interface (GUI) for configuring the device. The GUI allows you to select the desired audio application, and it generates the necessary configuration files and code.
-
The maximum power consumption of the ZL38050LDF1 depends on the operating mode and configuration. According to the datasheet, the maximum power consumption is approximately 350 mW in the highest power mode. However, this value can be reduced by optimizing the device configuration and using power-saving features.
-
Yes, the ZL38050LDF1 can be used with a different clock source, but it's essential to ensure that the clock frequency is within the recommended range (10 MHz to 40 MHz) and that the clock signal meets the device's jitter requirements. Additionally, you may need to adjust the device's configuration and PLL settings accordingly.
-
Microchip provides a troubleshooting guide (DS50002458A) that covers common issues and their solutions. Additionally, you can use the ZL38050LDF1's built-in diagnostic features, such as the audio analyzer and signal generator, to help identify and debug issues.
