ZL38063LDF1 - Microchip

Description: Audio Audio Signal Processor 4 Channel 64-QFN (9x9)

Download ZL38063LDF1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ZL38063LDF1 - Microchip - PCB symbol
click to zoom
PCB Footprints

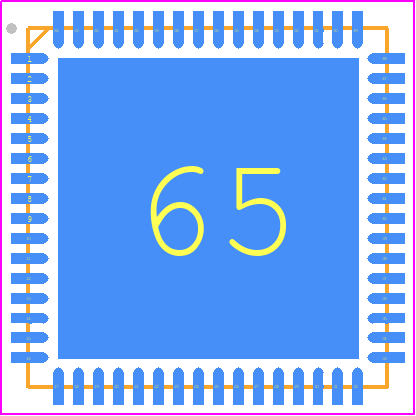

ZL38063LDF1 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-64 PIN
click to zoom
3D Models
ZL38063LDF1 - Microchip - 3D model - Quad Flat No-Lead - QFN-64 PIN
click to zoom

ZL38063LDF1 Details

  • Manufacturer Part Number:

    ZL38063LDF1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    64

  • Manufacturer Package Code:

    VQFN-64

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC64,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.26 V

  • Supply Voltage-Min (Vsup):

    1.14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    9 mm

ZL38063LDF1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ZL38063LDF1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To optimize the performance of the ZL38063LDF1 in a noisy environment, use a low-pass filter on the input, add a shield around the device, and use a ferrite bead or a common-mode choke to filter out high-frequency noise.
  • The maximum power dissipation of the ZL38063LDF1 is dependent on the thermal resistance of the package and the ambient temperature. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature.
  • Yes, the ZL38063LDF1 can be used in a battery-powered device. However, it's essential to consider the power consumption and the battery life. The device has a low quiescent current of 1.5mA, making it suitable for battery-powered applications.
  • To troubleshoot issues with the ZL38063LDF1, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input signal is within the specified range and the output is not overloaded. Use an oscilloscope to check the input and output waveforms.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZL38063LDF1 Overview

Use the download button to access the ZL38063LDF1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZL380, or try a keyword search, such as Other Consumer ICs
