ZL38080LDG1 - Microsemi Corporation

ZL38080LDG1 Details

• Manufacturer Part Number:

  ZL38080LDG1

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

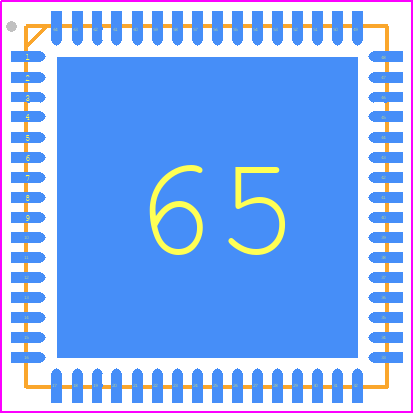

• Package Description:

  QFN-64

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Microsemi Corporation (now Microchip)

• Consumer IC Type:

  CONSUMER CIRCUIT

• JESD-30 Code:

  S-XQCC-N64

• Length:

  9 mm

• Number of Functions:

  1

• Number of Terminals:

  64

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC64,.35SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Seated Height-Max:

  1 mm

• Supply Voltage-Max (Vsup):

  3.465 V

• Supply Voltage-Min (Vsup):

  3.135 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  9 mm
