ZL40204LDG1 - Microsemi Corporation

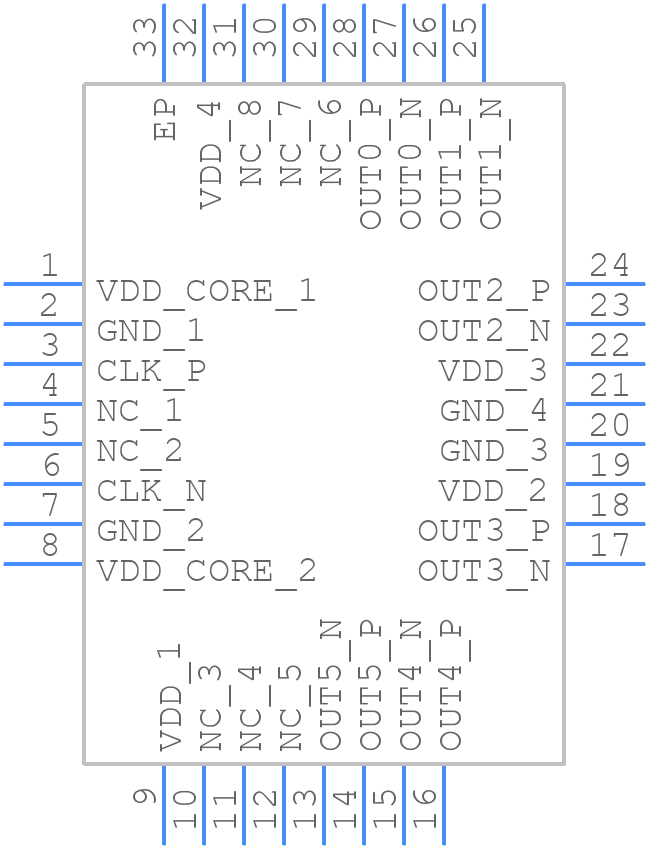

ZL40204LDG1 Details

• Manufacturer Part Number:

  ZL40204LDG1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Part Package Code:

  QFN

• Package Description:

  5 X 5 MM, 0.90 MM HEIGHT, 0.50 MM PITCH, MO-220, QFN-32

• Pin Count:

  32

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Microsemi Corporation (now Microchip)

• Additional Feature:

  ALSO OPERATES AT 3.3 V SUPPLY

• Family:

  4000/14000/40000

• Input Conditioning:

  DIFFERENTIAL

• JESD-30 Code:

  S-XQCC-N32

• Length:

  5 mm

• Logic IC Type:

  LOW SKEW CLOCK DRIVER

• Number of Functions:

  1

• Number of Terminals:

  32

• Number of True Outputs:

  12

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC32,.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Prop. Delay@Nom-Sup:

  2 ns

• Propagation Delay (tpd):

  2 ns

• Qualification Status:

  Not Qualified

• Same Edge Skew-Max (tskwd):

  0.1 ns

• Seated Height-Max:

  1 mm

• Supply Voltage-Max (Vsup):

  2.625 V

• Supply Voltage-Min (Vsup):

  2.375 V

• Supply Voltage-Nom (Vsup):

  2.375 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  5 mm
