ZL40205LDG1 - Microchip

Description: Clock Buffer 1:6 LVPECL Fanout Buffer w/Int. Term.

Download ZL40205LDG1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

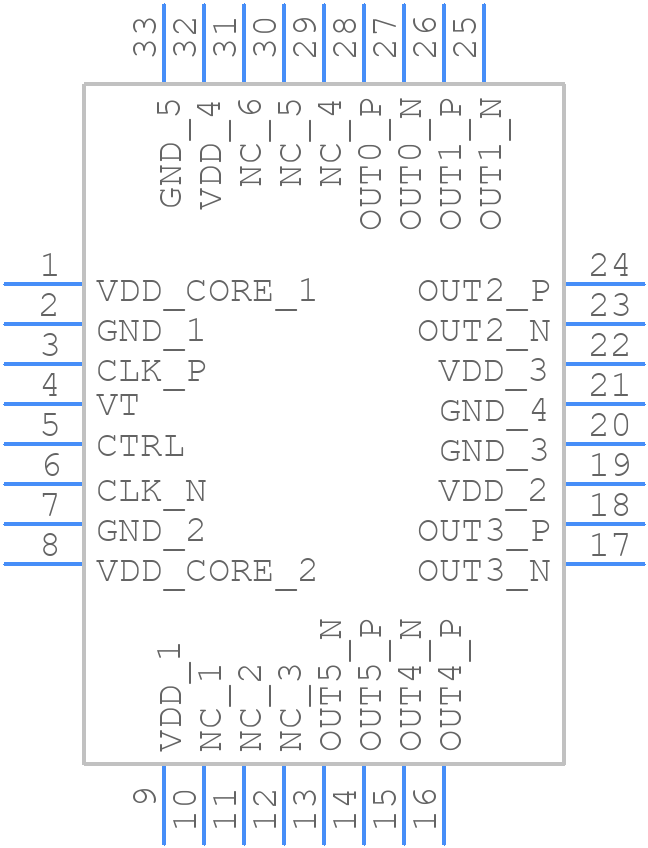

Symbol
ZL40205LDG1 - Microchip - PCB symbol
click to zoom
PCB Footprints
ZL40205LDG1 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 pin QFN..
click to zoom

ZL40205LDG1 Details

  • Manufacturer Part Number:

    ZL40205LDG1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Additional Feature:

    ALSO OPERATES AT 3.3 V SUPPLY

  • Family:

    4000/14000/40000

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of True Outputs:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    2 ns

  • Same Edge Skew-Max (tskwd):

    0.1 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ZL40205LDG1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ZL40205LDG1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the ZL40205LDG1 output voltage, it is recommended to use a minimum output capacitance of 10uF, and to ensure that the output capacitor has a low ESR (Equivalent Series Resistance). Additionally, the input voltage should be well-regulated and the device should be operated within its recommended operating conditions.
  • The maximum ambient temperature range for the ZL40205LDG1 is -40°C to +125°C. However, the device's performance and reliability may be affected if operated at the extreme ends of this range.
  • Yes, the ZL40205LDG1 is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure that it meets the requirements of high-reliability applications. However, it is recommended to consult with Microchip Technology Inc. for specific requirements and guidelines.
  • To troubleshoot issues with the ZL40205LDG1, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within its recommended operating conditions and that the PCB layout is correct. If the issue persists, consult the datasheet and application notes, and contact Microchip Technology Inc. for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZL40205LDG1 Overview

Use the download button to access the ZL40205LDG1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ZL402, or try a keyword search, such as Clock Drivers
