ZL40212LDG1 - Microchip

Description: Clock Buffer 1:2 LVDS Fanout Buffer w/Ext. Term.

Download ZL40212LDG1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

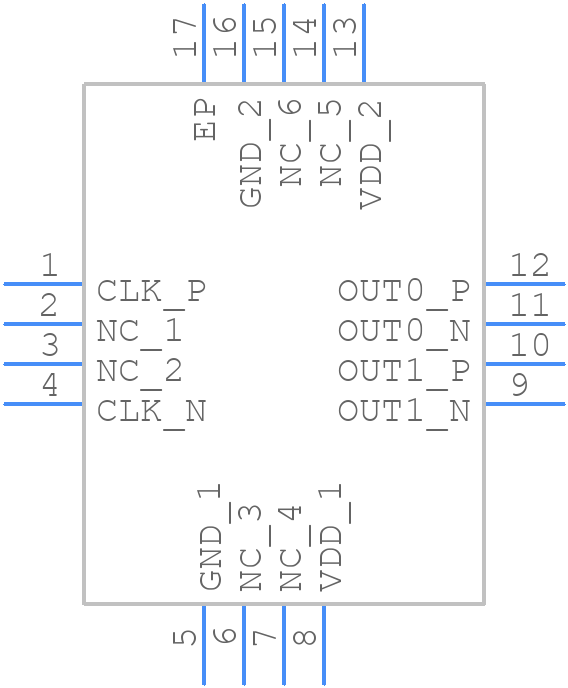

ZL40212LDG1 - Microchip - PCB symbol
click to zoom
PCB Footprints
ZL40212LDG1 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 pin QFN
click to zoom
3D Models
ZL40212LDG1 - Microchip - 3D model - Quad Flat No-Lead - 16 pin QFN
click to zoom

ZL40212LDG1 Details

  • Manufacturer Part Number:

    ZL40212LDG1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    VQFN-16

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Additional Feature:

    ALSO OPERATES AT 3.3 V SUPPLY

  • Family:

    4000/14000/40000

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    2 ns

  • Same Edge Skew-Max (tskwd):

    0.1 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

ZL40212LDG1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ZL40212LDG1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the ZL40212LDG1 output voltage, it is essential to use the recommended output capacitor value and type, and to ensure that the output capacitor is placed close to the device. Additionally, the input voltage should be stable and within the recommended range.
  • The maximum ambient temperature range for the ZL40212LDG1 is -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it is recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • Yes, the ZL40212LDG1 is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure that it meets the required standards for high-reliability applications. However, it is essential to follow the recommended design and manufacturing guidelines to ensure the device's reliability.
  • To troubleshoot issues with the ZL40212LDG1, start by checking the input voltage and ensuring that it is within the recommended range. Then, check the output voltage and ensure that it is stable and within the recommended range. If the issue persists, check the PCB layout and ensure that it meets the recommended layout guidelines. If the issue still persists, consult the datasheet and application notes for further guidance.
