Microsemi provides a recommended PCB layout guide in their application note AN-803, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The ZL40213LDF1 requires a specific power-up sequence to ensure proper initialization. Refer to the datasheet section 8.1 for the recommended power-up sequence, and ensure that the device is properly reset and configured during power-up.
The ZL40213LDF1 has a maximum junction temperature of 150°C. Ensure proper thermal management by providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. Refer to the datasheet section 7 for thermal management guidelines.
Microsemi provides a troubleshooting guide in their application note AN-804, which includes steps to identify and resolve common issues such as oscillation, noise, and output voltage errors. Additionally, use oscilloscopes and other diagnostic tools to analyze the device's behavior and identify the root cause of the issue.
Yes, the ZL40213LDF1 is a high-frequency device and requires proper EMI/EMC design considerations. Ensure proper shielding, use of EMI filters, and follow the recommended PCB layout guidelines to minimize EMI/EMC issues. Refer to the datasheet section 9 for EMI/EMC guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZL40213LDF1 Overview

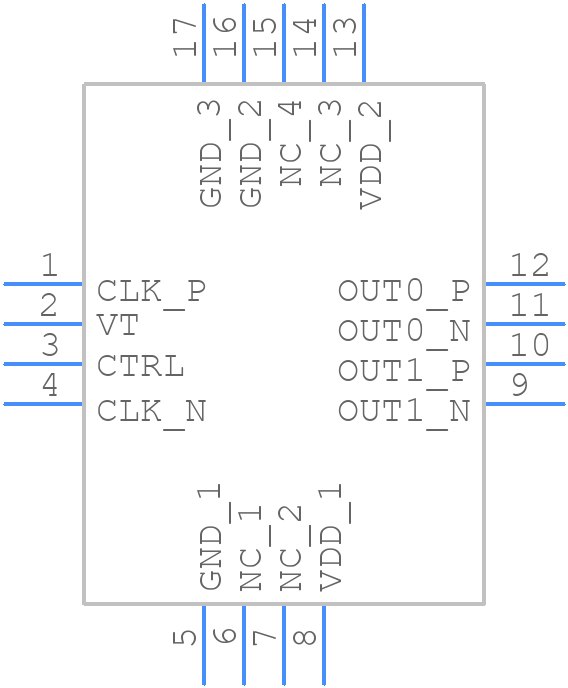

Use the download button to access the ZL40213LDF1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZL402,
or try a keyword search, such as Clock Drivers
