ZL40264LDG1 - Microchip

Description: Clock Buffer 4-Output PCIe Fanout Buffers with Invidual Output Enable

Download ZL40264LDG1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

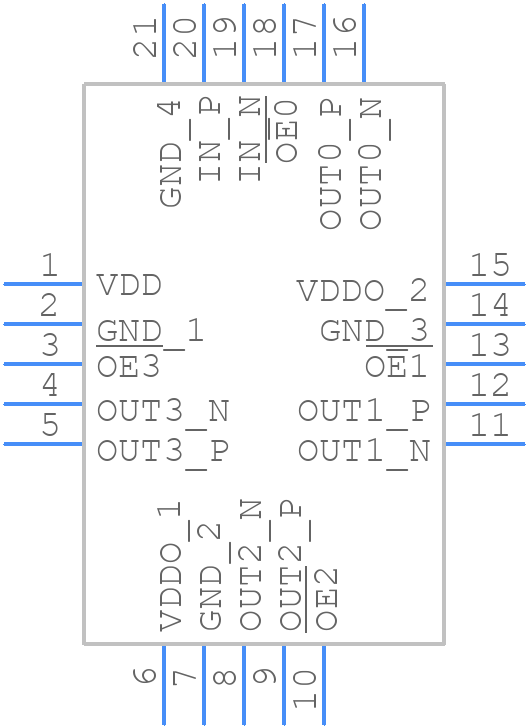

ZL40264LDG1 - Microchip - PCB symbol
click to zoom
PCB Footprints
ZL40264LDG1 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-Lead 4 mm × 4 mm VQFN with 2.125 mm Exposed Pad
click to zoom

ZL40264LDG1 Details

  • Manufacturer Part Number:

    ZL40264LDG1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    VQFN-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    9 Weeks

  • Date Of Intro:

    2019-08-07

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Power Supply Current-Max (ICC):

    53 mA

  • Prop. Delay@Nom-Sup:

    0.84 ns

  • Propagation Delay (tpd):

    1 ns

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • fmax-Min:

    400 MHz

ZL40264LDG1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ZL40264LDG1 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure the output capacitor is properly sized and placed close to the device. Also, ensure the input voltage is within the recommended range, and the input capacitor is properly sized and placed close to the device. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.
  • The maximum ambient temperature range for the ZL40264LDG1 is -40°C to +125°C. However, the device can operate up to 150°C with derating.
  • Yes, the ZL40264LDG1 is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high reliability. However, it is recommended to follow the recommended operating conditions and design guidelines to ensure the device operates within its specifications.
  • To troubleshoot issues with the ZL40264LDG1, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly sized and placed. Check for any signs of overheating, and ensure the device is operated within its recommended operating conditions. If the issue persists, consult the datasheet and application notes for further guidance.
