ZLTMM-113-63-S-D-375 - SAMTEC

Description: Headers & Wire Housings 2.00 mm Shrouded Variable Stack Height Terminal Strip

Download ZLTMM-113-63-S-D-375 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ZLTMM-113-63-S-D-375 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

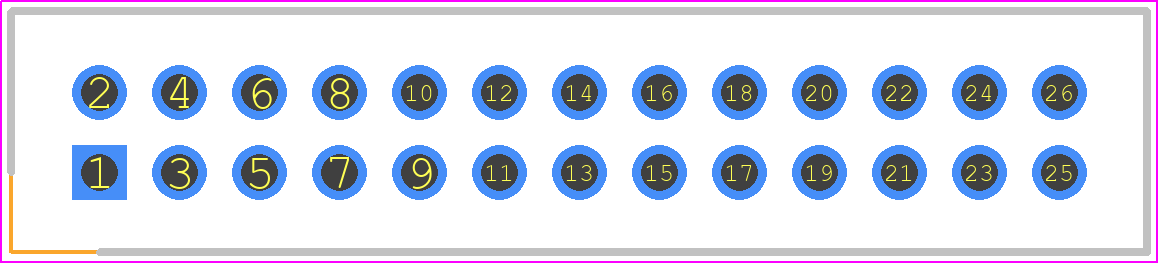

ZLTMM-113-63-S-D-375 - SAMTEC PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - ZLTMM-113-63-S-D-375*+-+/
click to zoom
3D Models
ZLTMM-113-63-S-D-375 - SAMTEC - 3D model - Header, Shrouded - Straight PTH Box - ZLTMM-113-63-S-D-375*+-+/
click to zoom

ZLTMM-113-63-S-D-375 Details

  • Manufacturer Part Number:

    ZLTMM-113-63-S-D-375

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

ZLTMM-113-63-S-D-375 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the ZLTMM-113-63-S-D-375 connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the ZLTMM-113-63-S-D-375 connector is designed to withstand high-vibration environments. Samtec's testing shows that it can withstand vibrations up to 20 G's (196 m/s²) in the Z-axis and 10 G's (98 m/s²) in the X- and Y-axes.
  • The maximum operating temperature of the ZLTMM-113-63-S-D-375 connector is 125°C (257°F) according to Samtec's datasheet.
  • Yes, the ZLTMM-113-63-S-D-375 connector is RoHS and REACH compliant, meeting the requirements of the European Union's directives on the restriction of hazardous substances and the registration, evaluation, authorization, and restriction of chemicals.
  • The mating cycle life of the ZLTMM-113-63-S-D-375 connector is 500 cycles minimum according to Samtec's testing and application notes.
