ZMCJM9T13R - LITTELFUSE

ZMCJM9T13R Details

• Manufacturer Part Number:

  ZMCJM9T13R

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Vietnam

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  Littelfuse Inc

• YTEOL:

  8

• Actuator Material:

  NYLON

• Actuator Type:

  SIMULATED LEVER

• Body Breadth:

  6.6 mm

• Body Height:

  5.8 mm

• Body Length or Diameter:

  12.8 mm

• Contact (AC) Max Rating R Load:

  0.1A@125VAC

• Contact Current(AC)-Max:

  0.1 A

• Contact Current(DC)-Max:

  0.2 A

• Contact (DC) Max Rating R Load:

  .2A@60VDC

• Contact Timing:

  SNAP ACTION

• Contact Voltage(AC)-Max:

  125 V

• Contact Voltage(DC)-Max:

  60 V

• Dielectric Withstand Volts:

  1000VRMS V

• Electrical Life:

  15000 Cycle(s)

• Housing Material:

  NYLON

• Insulation Resistance:

  100000000 Ω

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Operating Force-Max:

  1.47 N

• Operating Position:

  0.41 inch

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

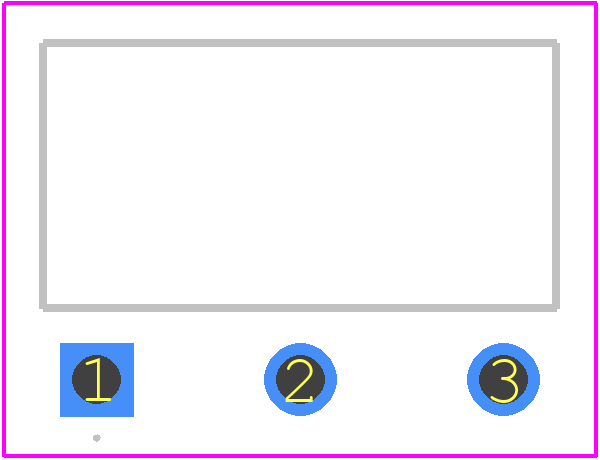

• PCB Hole Count:

  3

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Switch Function:

  SPDT

• Switch Type:

  SNAP ACTING/LIMIT SWITCH

• Terminal Finish:

  Silver (Ag)

• Terminal Length:

  0.122 inch

• Terminal Material:

  BRASS

• Termination Type:

  SOLDER
