ZSC31010CEG1-T - Renesas Electronics

Description: The ZSC31010 is a CMOS integrated circuit, which enables easy and precise calibration of resistive bridge sensors via EEPROM. When mated to a resistive bridge sensor, it will digitally calibrate offset and gain with the option to calibrate offset and gain coefficients and linearity over temperature. A second-order compensation can be enabled for temperature coefficients of gain or offset or bridge linearity. ZSC31010 communicates via IDT's ZACwire™ serial interface to the host computer and is easily mass ca

Download ZSC31010CEG1-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

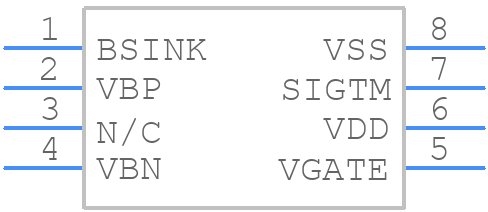

Symbol
ZSC31010CEG1-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSC31010CEG1-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG8_
click to zoom
3D Models
ZSC31010CEG1-T - Renesas Electronics - 3D model - Small Outline Packages - DCG8_
click to zoom

ZSC31010CEG1-T Details

  • Manufacturer Part Number:

    ZSC31010CEG1-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Additional Feature:

    ALSO HAS SUPPLY FROM 5.5V TO 30V WITH EXT JFET REG

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -50 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

ZSC31010CEG1-T Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN0265EJ0100) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ZSC31010CEG1-T requires a one-time calibration process to ensure accurate temperature measurement. Renesas provides a calibration procedure in their application note (R01AN0265EJ0100) which involves measuring the device's output voltage at multiple temperature points and calculating the calibration coefficients.
  • The ZSC31010CEG1-T has an operating temperature range of -40°C to 125°C, but it can be extended to 150°C with some limitations. However, it's recommended to consult with Renesas support for specific use cases and applications.
  • The ZSC31010CEG1-T is designed to operate in high-vibration environments, but it's recommended to follow Renesas' guidelines for vibration testing and to ensure proper PCB mounting and mechanical design to minimize the effects of vibration on the device's performance.
  • Renesas provides a troubleshooting guide in their application note (R01AN0265EJ0100) which covers common issues and their possible causes, as well as steps to troubleshoot and resolve them. Additionally, Renesas support can be contacted for further assistance.
