ZSC31010CIG1-R - Renesas Electronics

Description: The ZSC31010 is a CMOS integrated circuit, which enables easy and precise calibration of resistive bridge sensors via EEPROM. When mated to a resistive bridge sensor, it will digitally calibrate offset and gain with the option to calibrate offset and gain coefficients and linearity over temperature. A second-order compensation can be enabled for temperature coefficients of gain or offset or bridge linearity. ZSC31010 communicates via IDT's ZACwire™ serial interface to the host computer and is easily mass ca

Download ZSC31010CIG1-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

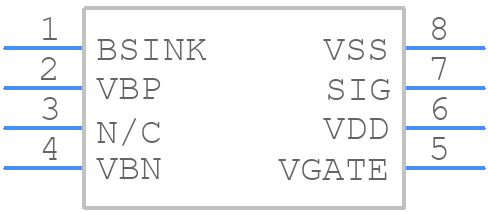

ZSC31010CIG1-R - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSC31010CIG1-R - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG8-ren1
click to zoom
3D Models
ZSC31010CIG1-R - Renesas Electronics - 3D model - Small Outline Packages - DCG8-ren1
click to zoom

ZSC31010CIG1-R Details

  • Manufacturer Part Number:

    ZSC31010CIG1-R

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Additional Feature:

    ALSO HAS SUPPLY FROM 5.5V TO 30V WITH EXT JFET REG

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

ZSC31010CIG1-R Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AN1469) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and accuracy.
  • The ZSC31010CIG1-R requires calibration for each specific application. Renesas provides a calibration guide in their application note (AN1469) which includes steps for calibrating the device using the ZSC31010 Evaluation Kit and the ZSC31010 Calibration Software.
  • The ZSC31010CIG1-R has an operating temperature range of -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance and accuracy.
  • Yes, the ZSC31010CIG1-R has built-in noise filtering and error correction mechanisms to ensure accurate measurements in noisy environments. However, it's still recommended to follow proper PCB design and layout guidelines to minimize noise interference.
  • The ZSC31010CIG1-R can be interfaced with a microcontroller using the I2C or SPI interface. Renesas provides example code and interface guidelines in their application note (AN1469) and datasheet.
