ZSC31015EAG1-R - Renesas Electronics

Description: The ZSC31015 (RBicdLite™) is a CMOS integrated circuit for highly accurate amplification and sensor-specific correction of bridge sensor signals. Digital compensation of sensor offset, sensitivity, temperature drift and non-linearity is accomplished via an internal digital signal processor running a correction algorithm with calibration coefficients stored in a non-volatile EEPROM. The ZSC31015 is adjustable to nearly all piezo-resistive bridge sensors. Measured and corrected bridge values are provided at t

Download ZSC31015EAG1-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

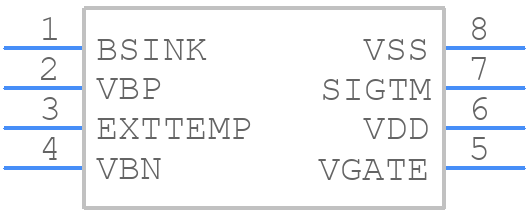

ZSC31015EAG1-R - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSC31015EAG1-R - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG8 _2021
click to zoom
3D Models
ZSC31015EAG1-R - Renesas Electronics - 3D model - Small Outline Packages - DCG8 _2021
click to zoom

ZSC31015EAG1-R Details

  • Manufacturer Part Number:

    ZSC31015EAG1-R

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Interface IC Type:

    ANALOG OUTPUT SENSOR SIGNAL CONDITIONER

  • JESD-30 Code:

    R-PDSO-G8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Silver (Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.81 mm

ZSC31015EAG1-R Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AN1469) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and accuracy.
  • The ZSC31015EAG1-R requires calibration for each specific application. Renesas provides a calibration guide in their application note (AN1469) which includes steps for calibrating the device using the ZSC31015EAG1-R Evaluation Kit.
  • The ZSC31015EAG1-R has an operating temperature range of -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance and accuracy.
  • The ZSC31015EAG1-R can be interfaced with a microcontroller using the I2C or SPI interface. Renesas provides example code and interface guidelines in their application note (AN1469) and datasheet.
  • The power consumption of the ZSC31015EAG1-R varies depending on the operating mode and frequency. According to the datasheet, the typical power consumption is 1.5mA in normal mode and 0.5mA in sleep mode.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZSC31015EAG1-R Overview

Use the download button to access the ZSC31015EAG1-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSC31, or try a keyword search, such as Analog to Digital Converters
