ZSC31015EAG1-T - Renesas Electronics

Description: The ZSC31015 (RBicdLite™) is a CMOS integrated circuit for highly accurate amplification and sensor-specific correction of bridge sensor signals. Digital compensation of sensor offset, sensitivity, temperature drift and non-linearity is accomplished via an internal digital signal processor running a correction algorithm with calibration coefficients stored in a non-volatile EEPROM. The ZSC31015 is adjustable to nearly all piezo-resistive bridge sensors. Measured and corrected bridge values are provided at t

Download ZSC31015EAG1-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

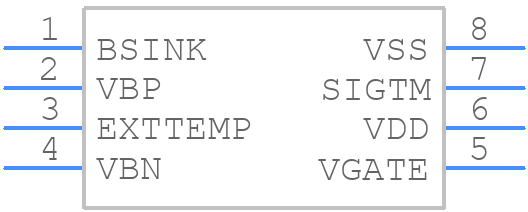

ZSC31015EAG1-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSC31015EAG1-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - soic 8-ren1
click to zoom
3D Models
ZSC31015EAG1-T - Renesas Electronics - 3D model - Small Outline Packages - soic 8-ren1
click to zoom

ZSC31015EAG1-T Details

  • Manufacturer Part Number:

    ZSC31015EAG1-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Interface IC Type:

    ANALOG OUTPUT SENSOR SIGNAL CONDITIONER

  • JESD-30 Code:

    R-PDSO-G8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Silver (Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.81 mm

ZSC31015EAG1-T Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AN1469) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and accuracy.
  • The ZSC31015EAG1-T requires a one-time calibration process to ensure accurate temperature measurement. Renesas provides a calibration procedure in their application note (AN1469) which involves measuring the sensor's output voltage at multiple temperature points and calculating the calibration coefficients.
  • The ZSC31015EAG1-T has an operating temperature range of -40°C to 150°C, but it's recommended to operate the sensor within the range of -20°C to 125°C for optimal accuracy and reliability.
  • The ZSC31015EAG1-T outputs an analog voltage signal that requires proper signal conditioning and amplification to ensure accurate temperature measurement. Renesas recommends using an op-amp or an ADC with a high input impedance and low noise to handle the sensor's output signal.
  • The ZSC31015EAG1-T has a typical response time of 10 ms to 30 ms, depending on the thermal interface material and the temperature range. This means that the sensor can track temperature changes within 10 ms to 30 ms, making it suitable for applications that require fast temperature measurement.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZSC31015EAG1-T Overview

Use the download button to access the ZSC31015EAG1-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSC31, or try a keyword search, such as Analog to Digital Converters
