ZSC31015EEG1-R - Renesas Electronics

Description: The ZSC31015 (RBicdLite™) is a CMOS integrated circuit for highly accurate amplification and sensor-specific correction of bridge sensor signals. Digital compensation of sensor offset, sensitivity, temperature drift and non-linearity is accomplished via an internal digital signal processor running a correction algorithm with calibration coefficients stored in a non-volatile EEPROM. The ZSC31015 is adjustable to nearly all piezo-resistive bridge sensors. Measured and corrected bridge values are provided at t

Download ZSC31015EEG1-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

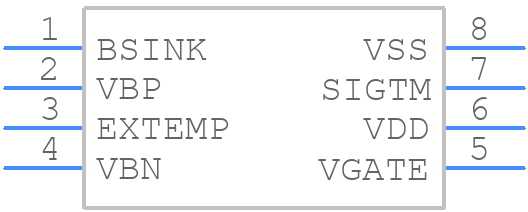

ZSC31015EEG1-R - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSC31015EEG1-R - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG8 (SOIC 8)
click to zoom
3D Models
ZSC31015EEG1-R - Renesas Electronics - 3D model - Small Outline Packages - DCG8 (SOIC 8)
click to zoom

ZSC31015EEG1-R Details

  • Manufacturer Part Number:

    ZSC31015EEG1-R

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Interface IC Type:

    ANALOG OUTPUT SENSOR SIGNAL CONDITIONER

  • JESD-30 Code:

    R-PDSO-G8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -50 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Silver (Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.81 mm

ZSC31015EEG1-R Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 100nF) between VCC and GND, and place it close to the device.
  • Calibration involves adjusting the internal offset and gain of the device. Use the built-in calibration registers to adjust the offset and gain. You can also use an external calibration signal to fine-tune the device. Refer to the application note for detailed calibration procedures.
  • The ZSC31015EEG1-R is rated for operation from -40°C to 125°C. However, the device's accuracy and performance may degrade at extreme temperatures. Ensure proper thermal management and consider using thermal shielding or heat sinks if operating in high-temperature environments.
  • Yes, the ZSC31015EEG1-R can operate from a 3.3V power supply. However, ensure that the power supply is stable and regulated, as the device is sensitive to power supply noise. Use a voltage regulator or a low-dropout regulator to ensure a stable 3.3V supply.
  • The ZSC31015EEG1-R communicates via an I2C interface. Connect the SCL and SDA pins to the microcontroller's I2C pins. Use a pull-up resistor (e.g., 4.7kΩ) on the SCL and SDA lines. Ensure the microcontroller's I2C clock frequency is within the recommended range (100 kHz to 400 kHz).
