ZSC31015EEG1-T - Renesas Electronics

Description: The ZSC31015 (RBicdLite™) is a CMOS integrated circuit for highly accurate amplification and sensor-specific correction of bridge sensor signals. Digital compensation of sensor offset, sensitivity, temperature drift and non-linearity is accomplished via an internal digital signal processor running a correction algorithm with calibration coefficients stored in a non-volatile EEPROM. The ZSC31015 is adjustable to nearly all piezo-resistive bridge sensors. Measured and corrected bridge values are provided at t

Download ZSC31015EEG1-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

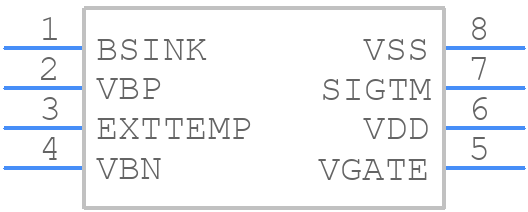

Symbol
ZSC31015EEG1-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSC31015EEG1-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG8 (SOIC 8)
click to zoom
3D Models
ZSC31015EEG1-T - Renesas Electronics - 3D model - Small Outline Packages - DCG8 (SOIC 8)
click to zoom

ZSC31015EEG1-T Details

  • Manufacturer Part Number:

    ZSC31015EEG1-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Interface IC Type:

    ANALOG OUTPUT SENSOR SIGNAL CONDITIONER

  • JESD-30 Code:

    R-PDSO-G8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -50 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Silver (Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.81 mm

ZSC31015EEG1-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the ZSC31015EEG1-T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for power supply decoupling.
  • The ZSC31015EEG1-T requires a one-time calibration process to ensure optimal accuracy. This involves applying a known input voltage and adjusting the internal calibration registers to achieve the desired accuracy. The calibration process is typically done using a software tool provided by Renesas or a third-party calibration software.
  • The ZSC31015EEG1-T is rated for operation over a temperature range of -40°C to 125°C. However, the device's accuracy and performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance.
  • Yes, the ZSC31015EEG1-T can be used in a multi-channel configuration. The device has a built-in multiplexer that allows it to measure multiple analog input channels. The number of channels supported depends on the specific device configuration and the application requirements.
  • The power consumption of the ZSC31015EEG1-T depends on the operating mode and the clock frequency. In normal operating mode, the device consumes around 1.5 mA at 3.3V supply voltage. In power-down mode, the device consumes less than 1 μA.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZSC31015EEG1-T Overview

Use the download button to access the ZSC31015EEG1-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSC31, or try a keyword search, such as Other Sensors/Transducers
