Description:The ZSC31050 is a CMOS integrated circuit for amplification and sensor-specific correction of bridge sensor signals. The device provides digital compensation of sensor offset, sensitivity, temperature drift and non-linearity by a 16-bit RISC microcontroller running a correction algorithm. The ZSC31050 accommodates virtually any resistive bridge sensor (e.g., piezo-resistive and steel-membrane-based pressure sensors). In addition, the device can interface to a separate temperature sensor. The bi-directional
The recommended PCB layout for the ZSC31050FEG1-R can be found in the Renesas Electronics Corporation's application note AN1841, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and noise reduction.
The ZSC31050FEG1-R requires calibration to ensure accurate sensor readings. The calibration process involves setting the sensor's offset and gain values, which can be done using the Renesas Electronics Corporation's calibration software tool or by implementing a custom calibration routine using the sensor's built-in calibration registers.
The ZSC31050FEG1-R has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of industrial and automotive applications.
Yes, the ZSC31050FEG1-R is designed to operate in high-vibration environments and can withstand vibrations up to 10g RMS. However, it's recommended to follow the recommended PCB design and mounting guidelines to ensure optimal performance and reliability.
The typical current consumption of the ZSC31050FEG1-R is around 1.5mA, making it suitable for battery-powered applications. However, the actual current consumption may vary depending on the operating mode, sampling rate, and other factors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZSC31050FEG1-R Overview

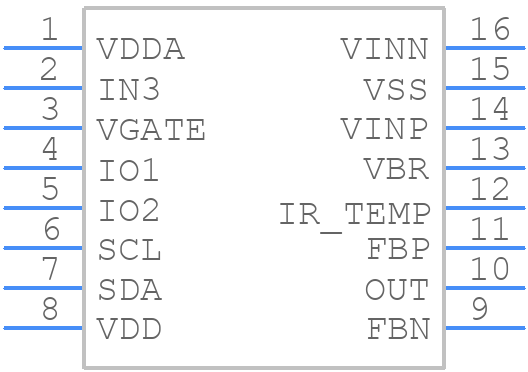

Use the download button to access the ZSC31050FEG1-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSC31,
or try a keyword search, such as Analog to Digital Converters
