ZSC31150GAG1-R - Renesas Electronics

Description: The ZSC31150 is a CMOS integrated circuit for amplification and sensor-specific correction of bridge sensor signals. The device provides digital compensation of sensor offset, sensitivity, temperature drift and non-linearity via a 16-bit RISC microcontroller running a correction algorithm. The ZSC31150 accommodates virtually any resistive bridge sensor (e.g., piezo-resistive and steel-membrane-based pressure sensors). The bi-directional digital interfaces (I2C and ZACwire™) can be used for a simple PC-contr

Download ZSC31150GAG1-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

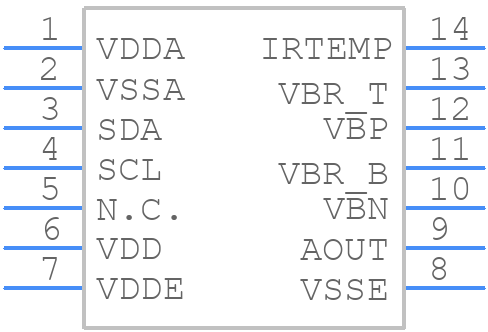

ZSC31150GAG1-R - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSC31150GAG1-R - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - SSOP14
click to zoom
3D Models
ZSC31150GAG1-R - Renesas Electronics - 3D model - Small Outline Packages - SSOP14
click to zoom

ZSC31150GAG1-R Details

  • Manufacturer Part Number:

    ZSC31150GAG1-R

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    14

  • Manufacturer Package Code:

    PYG14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

ZSC31150GAG1-R Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN3804EU0100) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Calibration involves adjusting the sensor's offset and gain to compensate for manufacturing variations. Renesas provides a calibration procedure in their application note (R01AN3804EU0100) which involves measuring the sensor's output at different temperatures and pressures, and then calculating the correction factors.
  • Although the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends limiting the operating temperature to -20°C to 85°C for optimal performance and accuracy.
  • Renesas recommends using a low-pass filter with a cutoff frequency of around 10 Hz to 100 Hz to filter out high-frequency noise. Additionally, using a shielded cable and proper grounding can help reduce electromagnetic interference (EMI).
  • Renesas recommends using a 10 μF to 100 μF decoupling capacitor between the VCC and GND pins to filter out power supply noise and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZSC31150GAG1-R Overview

Use the download button to access the ZSC31150GAG1-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSC31, or try a keyword search, such as Other Signal Circuits
