ZSC31150GEG1-R - Renesas Electronics

Description: The ZSC31150 is a CMOS integrated circuit for amplification and sensor-specific correction of bridge sensor signals. The device provides digital compensation of sensor offset, sensitivity, temperature drift and non-linearity via a 16-bit RISC microcontroller running a correction algorithm. The ZSC31150 accommodates virtually any resistive bridge sensor (e.g., piezo-resistive and steel-membrane-based pressure sensors). The bi-directional digital interfaces (I2C and ZACwire™) can be used for a simple PC-contr

Download ZSC31150GEG1-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

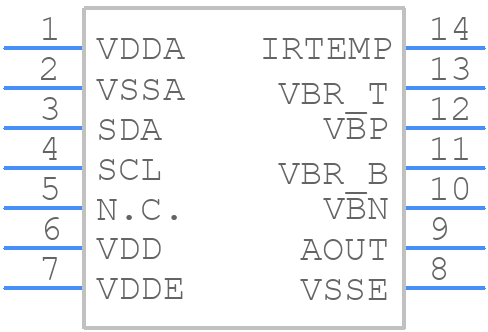

ZSC31150GEG1-R - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSC31150GEG1-R - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 14ssop+4
click to zoom
3D Models
ZSC31150GEG1-R - Renesas Electronics - 3D model - Small Outline Packages - 14ssop+4
click to zoom

ZSC31150GEG1-R Details

  • Manufacturer Part Number:

    ZSC31150GEG1-R

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    14

  • Manufacturer Package Code:

    PYG14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

ZSC31150GEG1-R Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog and digital power plane is recommended. Keep the analog and digital components separate and use a star topology for the power supply.
  • Calibration involves adjusting the offset and gain of the sensor outputs. Use the built-in calibration registers to adjust the offset and gain. Refer to the application note for detailed calibration procedures.
  • The maximum operating temperature range for the ZSC31150GEG1-R is -40°C to 125°C. However, the device can be operated at a reduced temperature range for specific applications.
  • The ZSC31150GEG1-R can be interfaced with a microcontroller using the I2C or SPI interface. Use the datasheet and application notes to determine the correct pin connections and communication protocols.
  • The power consumption of the ZSC31150GEG1-R varies depending on the operating mode and frequency. Refer to the datasheet for detailed power consumption specifications.
