ZSC31150GEG1-T - Renesas Electronics

Description: The ZSC31150 is a CMOS integrated circuit for amplification and sensor-specific correction of bridge sensor signals. The device provides digital compensation of sensor offset, sensitivity, temperature drift and non-linearity via a 16-bit RISC microcontroller running a correction algorithm. The ZSC31150 accommodates virtually any resistive bridge sensor (e.g., piezo-resistive and steel-membrane-based pressure sensors). The bi-directional digital interfaces (I2C and ZACwire™) can be used for a simple PC-contr

Download ZSC31150GEG1-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

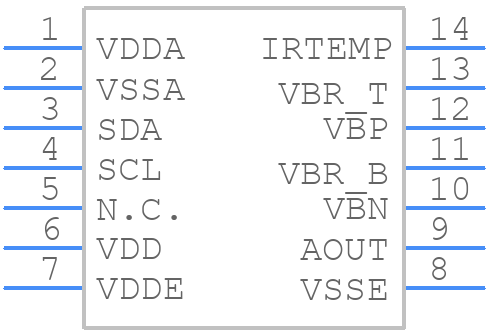

ZSC31150GEG1-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSC31150GEG1-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - ZSC31150GEG1-T
click to zoom
3D Models
ZSC31150GEG1-T - Renesas Electronics - 3D model - Small Outline Packages - ZSC31150GEG1-T
click to zoom

ZSC31150GEG1-T Details

  • Manufacturer Part Number:

    ZSC31150GEG1-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SSOP

  • Pin Count:

    14

  • Manufacturer Package Code:

    PYG14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    MATTE TIN

ZSC31150GEG1-T Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AN1843) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ZSC31150GEG1-T requires a one-time calibration process to ensure accurate temperature measurement. Renesas provides a calibration procedure in their application note (AN1844) which involves measuring the sensor's output voltage at multiple temperatures and calculating the calibration coefficients.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends derating the sensor's accuracy and repeatability above 105°C. For high-reliability applications, it's recommended to operate the sensor within the -20°C to 85°C range.
  • The ZSC31150GEG1-T is not designed for use in humid or high-moisture environments. Renesas recommends using a conformal coating or potting the sensor to protect it from moisture and ensure reliable operation.
  • Renesas recommends a specific power-up sequence to ensure proper initialization and operation of the sensor. The recommended sequence is: VDD, then VCC, followed by a 10ms delay before applying the clock signal.
