The recommended PCB layout for the ZSR500G involves placing the device close to the power source, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it is recommended to use a 10uF ceramic capacitor between the VIN and GND pins to filter out noise and improve stability.
To ensure the ZSR500G is stable and does not oscillate, it is recommended to follow the recommended PCB layout, use a sufficient output capacitor (at least 10uF), and ensure that the input voltage is within the specified range. Additionally, the device should be operated within the recommended temperature range and the output should not be overloaded.
The maximum output current that the ZSR500G can handle is 500mA. However, it is recommended to derate the output current based on the ambient temperature and the input voltage to ensure reliable operation.
The ZSR500G is rated for operation up to 125°C, but it is recommended to derate the output current and input voltage at higher temperatures to ensure reliable operation. Additionally, the device should be mounted on a heat sink to dissipate heat effectively.
To troubleshoot issues with the ZSR500G, start by checking the input voltage and output voltage to ensure they are within the specified range. Check for any signs of overheating, such as excessive temperature or burning smell. Verify that the output capacitor is properly connected and of sufficient value. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZSR500G Overview

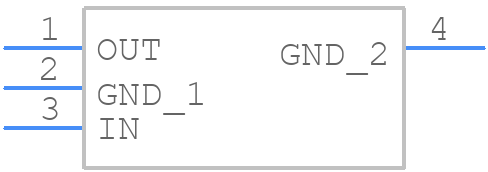

Use the download button to access the ZSR500G schematic symbol, PCB footprint, and 3D model.
