ZSS-105-08-G-D-1190 - SAMTEC

Description: Conn Elevated Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole

Download ZSS-105-08-G-D-1190 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

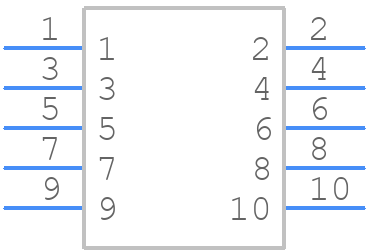

ZSS-105-08-G-D-1190 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

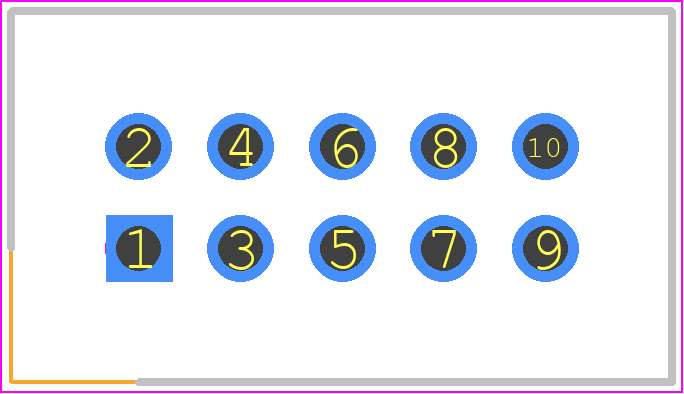

ZSS-105-08-G-D-1190 - SAMTEC PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - ZSS-105-08-G-D-1190
click to zoom
3D Models
ZSS-105-08-G-D-1190 - SAMTEC - 3D model - Header, Shrouded - Straight PTH Box - ZSS-105-08-G-D-1190
click to zoom

ZSS-105-08-G-D-1190 Details

  • Manufacturer Part Number:

    ZSS-105-08-G-D-1190

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Additional Feature:

    FLEX STACK; SHROUDED

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

ZSS-105-08-G-D-1190 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the ZSS-105-08-G-D-1190 connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the ZSS-105-08-G-D-1190 connector is designed to withstand vibration and shock according to Samtec's testing and validation. However, it's recommended to consult with Samtec's application engineers to ensure the connector meets the specific requirements of your application.
  • The maximum operating temperature of the ZSS-105-08-G-D-1190 connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's performance at higher temperatures to ensure reliable operation.
  • The ZSS-105-08-G-D-1190 connector is not designed to be used in wet or humid environments. If your application requires exposure to moisture, consider using a connector with a higher IP rating or applying additional sealing or coating to the connector.
  • The recommended mating cycle for the ZSS-105-08-G-D-1190 connector is 500-1000 cycles according to Samtec's application notes. However, this may vary depending on the specific application and usage.
