ZSS-110-01-L-D-520 footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

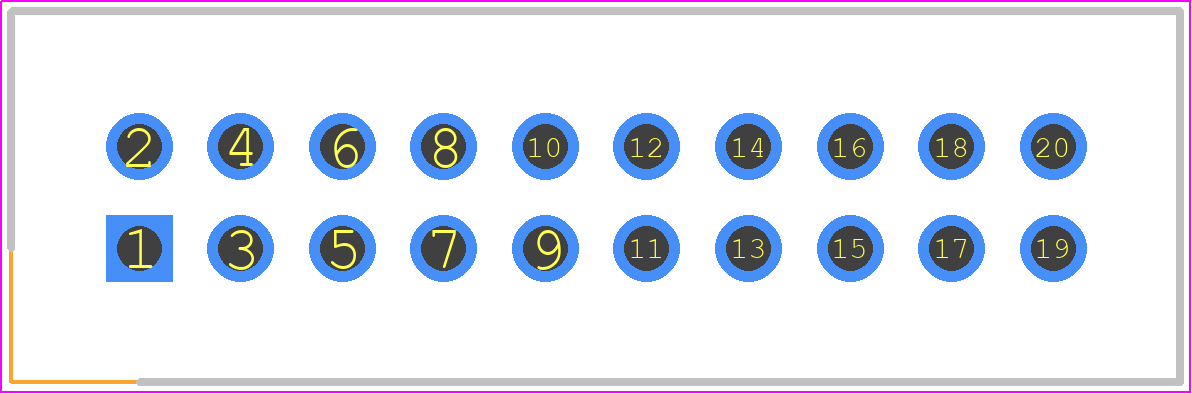

ZSS-110-01-L-D-520 - SAMTEC PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - ZSS-110-01-L-D-520

click to zoom

3D Models

ZSS-110-01-L-D-520 - SAMTEC - 3D model - Header, Shrouded - Straight PTH Box - ZSS-110-01-L-D-520

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ZSS-110-01-L-D-520
Part Number ZSS-110-01-L-D-520
Manufacturer SAMTEC
Pin Count 20
Part Category Connector
Package Category Header, Shrouded - Straight PTH Box
Footprint Name Header, Shrouded - Straight PTH Box - ZSS-110-01-L-D-520
Released Date May 8, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ZSS-110-01-L-D-520 Details

Manufacturer Part Number:
ZSS-110-01-L-D-520
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
FLEX STACK, SHROUDED
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Mating:
TIN OVER NICKEL
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Rated Current (Signal):
3 A
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
20
UL Flammability Code:
94V-0

ZSS-110-01-L-D-520 Frequently Asked Questions (FAQs)

The recommended torque for the screws on the ZSS-110-01-L-D-520 is 1.5-2.5 in-lbs (0.17-0.28 Nm) according to Samtec's application notes.
Yes, the ZSS-110-01-L-D-520 is designed to withstand high-vibration environments. Samtec's testing shows that it can withstand vibrations up to 20 G's (196 m/s²) in the X, Y, and Z axes.
The ZSS-110-01-L-D-520 is rated for operating temperatures between -55°C and 125°C. However, Samtec recommends derating the connector's current rating at higher temperatures to ensure reliable operation.
The ZSS-110-01-L-D-520 has a mating cycle life of 500 cycles minimum, according to Samtec's specifications.
Yes, the ZSS-110-01-L-D-520 is designed for automated assembly and can be used with pick-and-place machines and other automation equipment.

Trust Checks

Community Provided

System Verified

Community Approved

ZSS-110-01-L-D-520 Overview

Use the download button to access the ZSS-110-01-L-D-520 schematic symbol, PCB footprint, and 3D model.
