ZSS-111-08-L-D-1180 footprint, schematic symbol and 3D model by SAMTEC

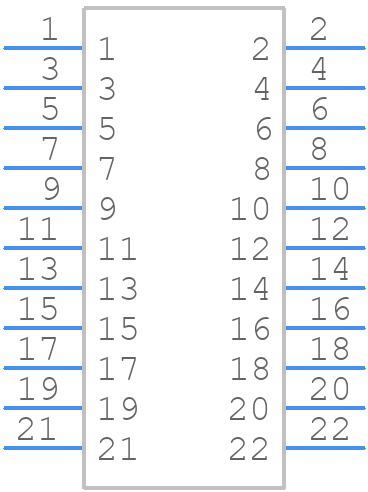

Symbol

click to zoom

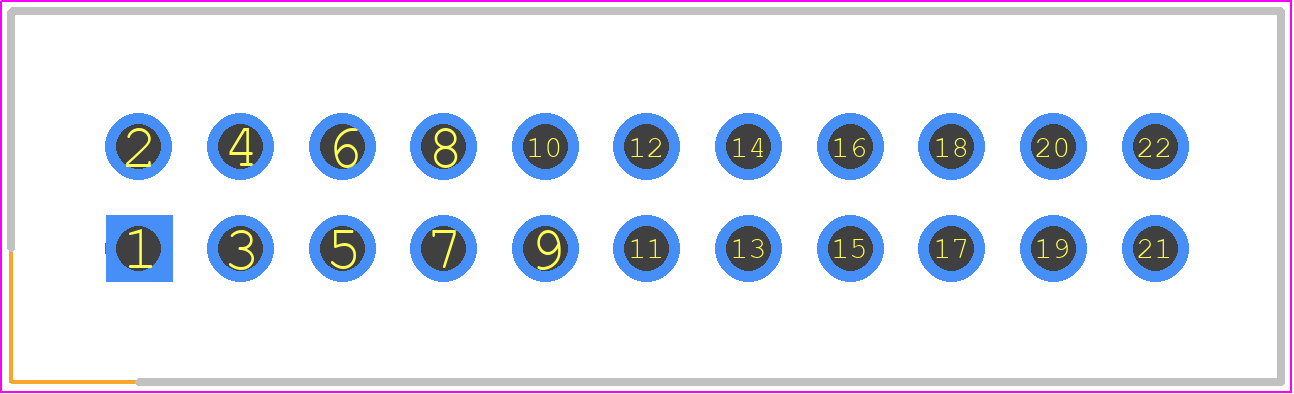

PCB Footprints

ZSS-111-08-L-D-1180 - SAMTEC PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - ZSS-111-08-L-D-1180

click to zoom

3D Models

ZSS-111-08-L-D-1180 - SAMTEC - 3D model - Header, Shrouded - Straight PTH Box - ZSS-111-08-L-D-1180

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ZSS-111-08-L-D-1180
Part Number ZSS-111-08-L-D-1180
Manufacturer SAMTEC
Pin Count 22
Part Category Connector
Package Category Header, Shrouded - Straight PTH Box
Footprint Name Header, Shrouded - Straight PTH Box - ZSS-111-08-L-D-1180
Released Date May 9, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ZSS-111-08-L-D-1180 Details

Manufacturer Part Number:
ZSS-111-08-L-D-1180
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
8
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Rated Current (Signal):
3 A
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
22
UL Flammability Code:
94V-0

ZSS-111-08-L-D-1180 Frequently Asked Questions (FAQs)

The recommended torque for the screws on the ZSS-111-08-L-D-1180 connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the ZSS-111-08-L-D-1180 connector is designed to withstand vibrations up to 20 G's (20 times the acceleration due to gravity) according to Samtec's vibration testing standards.
Yes, the ZSS-111-08-L-D-1180 connector is compatible with lead-free soldering processes, with a recommended soldering temperature range of 260-270°C (500-518°F).
The maximum operating temperature range for the ZSS-111-08-L-D-1180 connector is -55°C to 125°C (-69°F to 257°F) according to Samtec's specifications.
The ZSS-111-08-L-D-1180 connector has a moisture sensitivity level (MSL) rating of 1, which means it can withstand normal humidity levels, but it's not designed for immersion in water or extreme humidity environments.

Trust Checks

Community Provided

System Verified

Community Approved

ZSS-111-08-L-D-1180 Overview

Use the download button to access the ZSS-111-08-L-D-1180 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ZSS-1, or try a keyword search, such as Headers and Edge Type Connectors
