The recommended torque for the screws on the ZSS-113-05-L-D-915-LL connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's general guidelines for screw-down terminals.
Yes, the ZSS-113-05-L-D-915-LL connector is designed to withstand vibration and can be used in high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application requirements.
The maximum operating temperature for the ZSS-113-05-L-D-915-LL connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's performance at higher temperatures and to consult with a Samtec representative for specific application requirements.
Yes, the ZSS-113-05-L-D-915-LL connector is RoHS and REACH compliant, meeting the European Union's directives for restriction of hazardous substances and registration, evaluation, authorization, and restriction of chemicals.
The ZSS-113-05-L-D-915-LL connector is not designed for use in wet or humid environments. If exposure to moisture is a concern, Samtec recommends using a connector with a sealing or coating option, such as their SEARAY or Q2 connectors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZSS-113-05-L-D-915-LL Overview

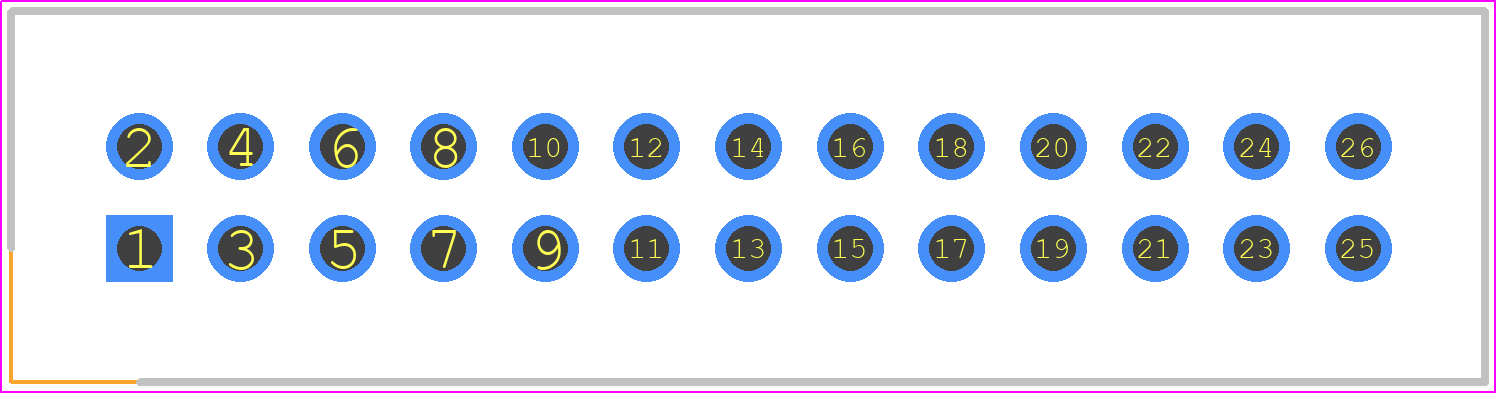

Use the download button to access the ZSS-113-05-L-D-915-LL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSS-1,
or try a keyword search, such as Headers and Edge Type Connectors
