ZSSC3123AA2R - Renesas Electronics

Description: The ZSSC3123 cLite™ is a CMOS integrated circuit for accurate capacitance-to-digital conversion and sensor-specific correction of capacitive sensor signals. Digital compensation of sensor offset, sensitivity and temperature drift is accomplished via an internal digital signal processor running a correction algorithm with calibration coefficients stored in a nonvolatile EEPROM. The ZSSC3123 is configurable for capacitive sensors with capacitances up to 260pF and a sensitivity of 125aF/LSB to 1pF/LSB dependin

Download ZSSC3123AA2R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

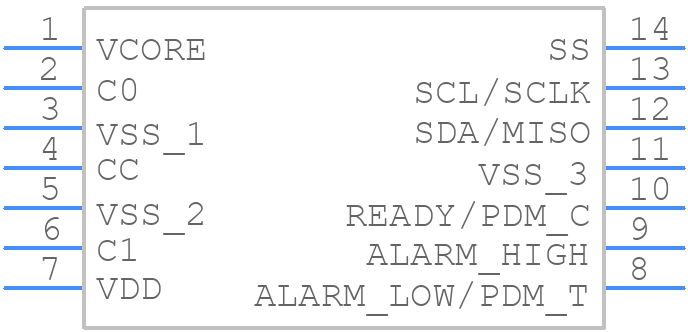

ZSSC3123AA2R - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSSC3123AA2R - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-1
click to zoom
3D Models
ZSSC3123AA2R - Renesas Electronics - 3D model - Small Outline Packages - TSSOP-1
click to zoom

ZSSC3123AA2R Details

  • Manufacturer Part Number:

    ZSSC3123AA2R

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • Manufacturer Package Code:

    PGG14T1

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

ZSSC3123AA2R Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AN1865) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and accuracy.
  • The ZSSC3123AA2R requires a one-time calibration process to adjust the internal gain and offset. Renesas provides a calibration guide in their application note (AN1865) which includes a step-by-step procedure for calibration using a calibration resistor and a voltage source.
  • The ZSSC3123AA2R has an operating temperature range of -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance and accuracy.
  • Yes, the ZSSC3123AA2R is designed to operate in high-vibration environments. However, it's recommended to follow proper PCB design and mounting guidelines to ensure the sensor's accuracy and reliability.
  • Renesas recommends following proper EMI design guidelines, such as using a shielded cable, keeping the sensor away from high-frequency sources, and using a common-mode choke to reduce EMI effects.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZSSC3123AA2R Overview

Use the download button to access the ZSSC3123AA2R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSSC3, or try a keyword search, such as Other Signal Circuits
