ZSSC3138BA2T - Renesas Electronics

Description: The ZSSC3138 is a member of the ZSSC313x product family of CMOS integrated circuits designed for automotive and industrial sensor applications. All family members are well suited for highly accurate amplification and sensor-specific correction of resistive bridge sensor signals. An internal 16-bit RISC microcontroller running a correction algorithm compensates sensor offset, sensitivity, temperature drift, and non-linearity of the connected sensor element. The required calibration coefficients are stored by

Download ZSSC3138BA2T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

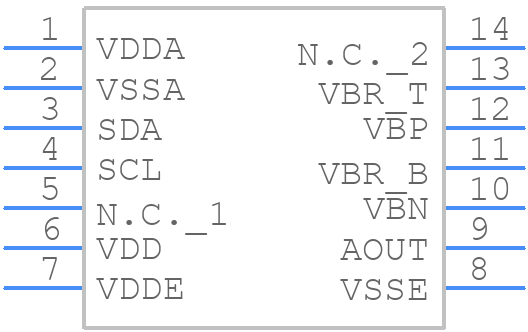

Symbol
ZSSC3138BA2T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSSC3138BA2T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PYG14-+-++
click to zoom
3D Models
ZSSC3138BA2T - Renesas Electronics - 3D model - Small Outline Packages - PYG14-+-++
click to zoom

ZSSC3138BA2T Details

  • Manufacturer Part Number:

    ZSSC3138BA2T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    14

  • Manufacturer Package Code:

    PYG14

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    TIN

ZSSC3138BA2T Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note 'ZSSC3138BA2T PCB Layout Guidelines' (document number R01AN4393EU0100). It's essential to follow these guidelines to ensure optimal performance, especially for noise reduction and thermal management.
  • The ZSSC3138BA2T has an internal calibration mechanism. However, for optimal accuracy, Renesas recommends performing an external calibration using an external voltage reference and a calibration resistor. The calibration procedure is described in the datasheet and application notes.
  • The ZSSC3138BA2T has an operating temperature range of -40°C to 125°C. However, the accuracy and performance may degrade at extreme temperatures. It's essential to consider the application's temperature range and potential thermal gradients when designing with this device.
  • The ZSSC3138BA2T is designed to be robust against vibrations. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress. Renesas recommends following the recommended mounting and soldering guidelines to ensure reliable operation in high-vibration environments.
  • The ZSSC3138BA2T has internal ESD protection, but it's still essential to follow proper ESD handling and protection procedures during manufacturing, assembly, and testing. Renesas recommends following the JEDEC standard JESD625-A for ESD handling and protection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZSSC3138BA2T Overview

Use the download button to access the ZSSC3138BA2T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSSC3, or try a keyword search, such as Other Signal Circuits
