Description:The ZSSC3218 is a sensor signal conditioner (SSC) integrated circuit for high-accuracy amplification and analog-to-digital conversion of a differential or pseudo-differential input signal. Designed for high-resolution sensor module applications, the ZSSC3218 can perform offset, span, and 1st and 2nd order temperature compensation of the measured signal. Developed for correction of resistive bridge or absolute voltage sensors, it can also provide a corrected temperature output measured with an internal senso
Renesas provides a recommended PCB layout in the application note 'ZSSC3218 PCB Layout Guidelines' (document number R01AN0325EU0100). It's essential to follow these guidelines to ensure optimal performance, especially for noise reduction and thermal management.
The ZSSC3218BI3R has an internal calibration mechanism. However, for optimal performance, Renesas recommends performing an external calibration using an external voltage reference and a calibration resistor. The calibration procedure is described in the datasheet and the application note 'ZSSC3218 Calibration and Trim' (document number R01AN0326EU0100).
The ZSSC3218BI3R has an operating temperature range of -40°C to 125°C. However, the device's accuracy and performance may degrade at extreme temperatures. It's essential to consider the temperature range of your specific application and ensure that the device is operated within its recommended specifications.
The ZSSC3218BI3R is designed to operate in a variety of environments, including those with high vibration. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Renesas recommends following the recommended mounting and handling procedures outlined in the datasheet and application notes.
Renesas provides a troubleshooting guide in the application note 'ZSSC3218 Troubleshooting Guide' (document number R01AN0327EU0100). This guide covers common issues, such as incorrect output voltage, noise, and oscillations, and provides guidance on how to identify and resolve these issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZSSC3218BI3R Overview

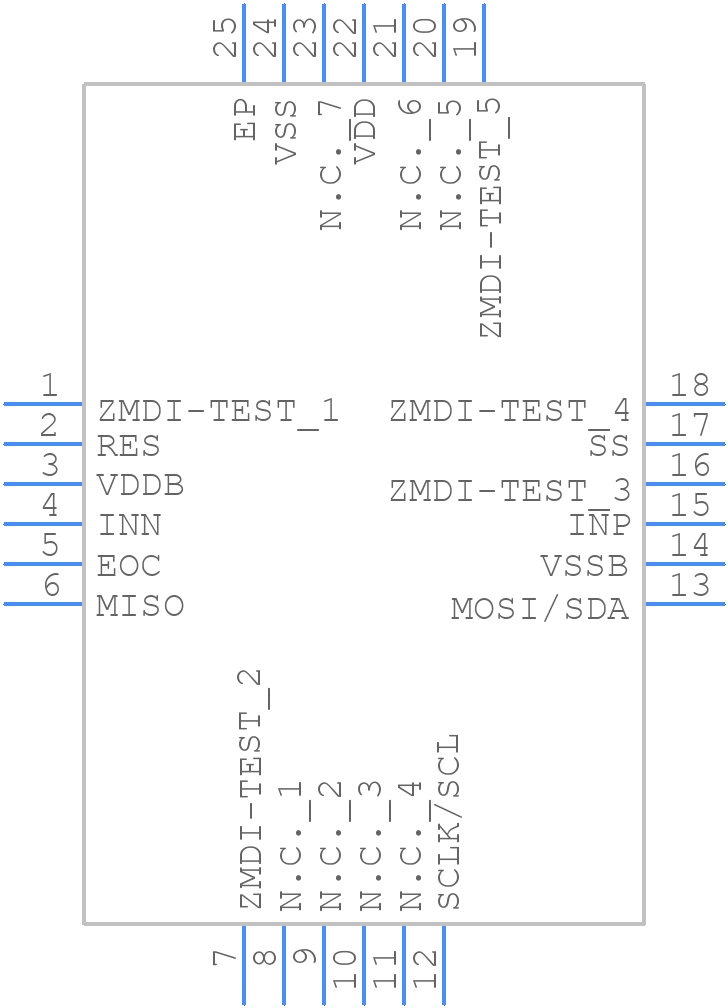

Use the download button to access the ZSSC3218BI3R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSSC3,
or try a keyword search, such as Other Signal Circuits
