ZSSC3224BI3R - Renesas Electronics

Description: The ZSSC3224 is a sensor signal conditioner (SSC) IC for high-accuracy amplification and analog-to digital conversion of a differential or pseudo-differential input signal. Designed for high-resolution sensor module applications, the ZSSC3224 can perform offset, span, and 1st and 2nd order temperature compensation of the measured signal. Developed for correction of resistive bridge or absolute voltage sensors, it can also provide a corrected temperature output measured with an internal sensor. The measured

Download ZSSC3224BI3R Model

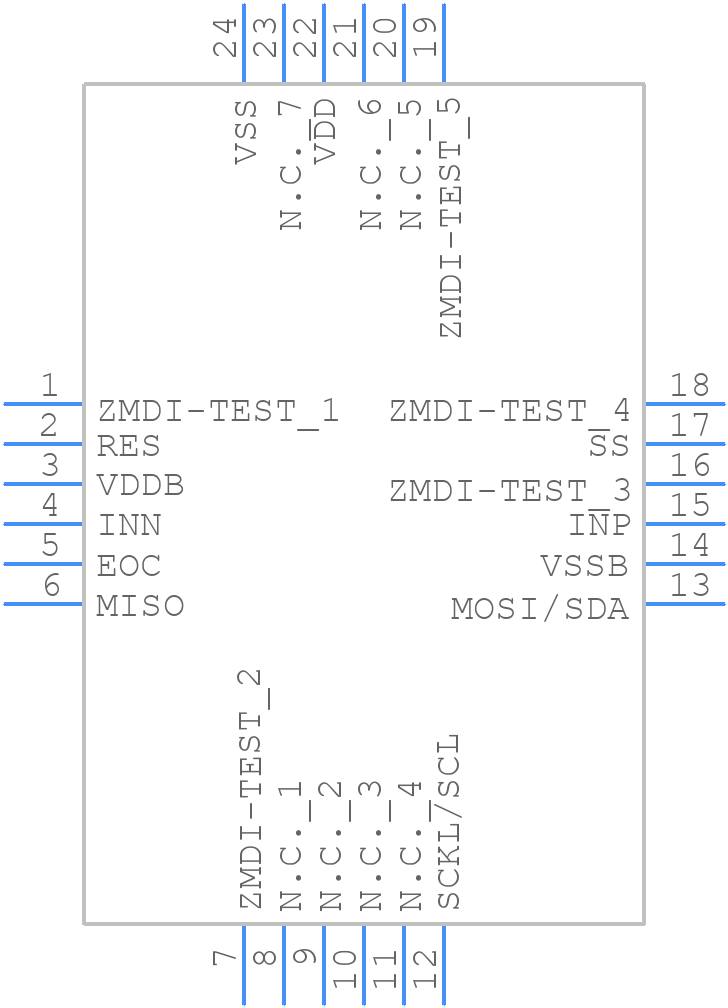

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ZSSC3224BI3R - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-PQFN-+-
click to zoom
3D Models
ZSSC3224BI3R - Renesas Electronics  - 3D model - Quad Flat No-Lead - 24-PQFN-+-
click to zoom

ZSSC3224BI3R Details

  • Manufacturer Part Number:

    ZSSC3224BI3R

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    24

  • Manufacturer Package Code:

    NLG24

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    TIN

ZSSC3224BI3R Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN19275, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and accuracy.
  • The ZSSC3224BI3R has a built-in calibration mechanism, but it may require additional calibration for specific applications. Renesas provides a calibration guide in their application note AN19276, which includes step-by-step instructions for calibrating the device.
  • The ZSSC3224BI3R has an operating temperature range of -40°C to 125°C, but it's recommended to operate within the specified temperature range for the specific grade of the device (e.g., -40°C to 105°C for the industrial grade).
  • Renesas provides guidelines for EMI and EMC in their application note AN19277, which includes recommendations for PCB design, component selection, and shielding to minimize EMI and ensure EMC compliance.
  • The recommended power-up sequence is to apply the analog supply voltage (VCC) first, followed by the digital supply voltage (VDD), and then the clock signal. This ensures proper initialization and operation of the device.
