ZSSC3230BI3W - Renesas Electronics

Description: The ZSSC3230  is a CMOS integrated circuit for accurate capacitance-to-digital conversion and sensor-specific correction of capacitive sensor signals. Digital compensation of sensor offset, sensitivity, and temperature drift is accomplished via an internal digital signal processor running a correction algorithm with calibration coefficients stored in a non-volatile, multiple-time programmable (MTP) memory. Programming the ZSSC3230 is simple via the serial interface. The interface is used for the PC-controll

Download ZSSC3230BI3W Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

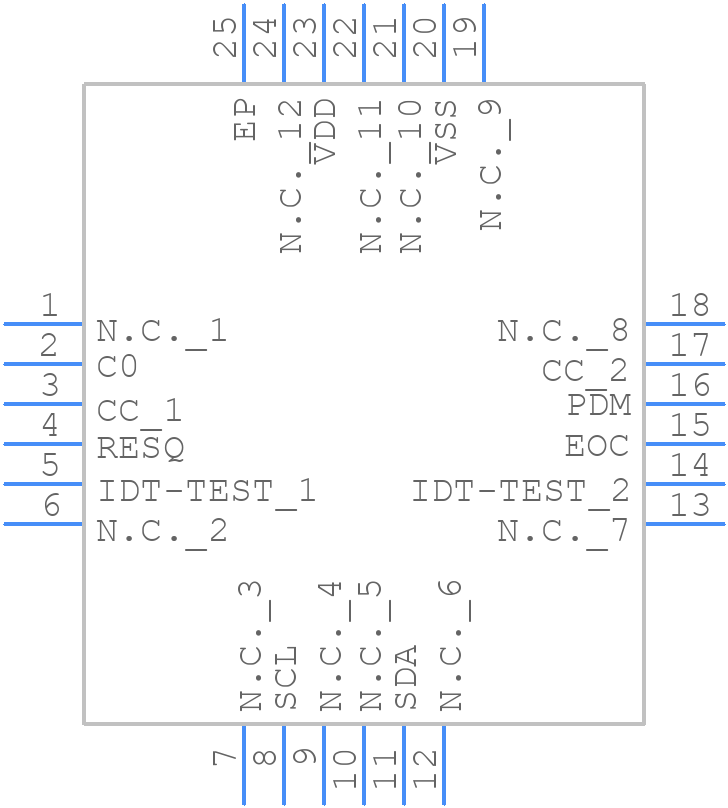

ZSSC3230BI3W - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSSC3230BI3W - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG24P1
click to zoom
3D Models
ZSSC3230BI3W - Renesas Electronics - 3D model - Quad Flat No-Lead - NLG24P1
click to zoom

ZSSC3230BI3W Details

  • Manufacturer Part Number:

    ZSSC3230BI3W

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    24

  • Manufacturer Package Code:

    NLG24P1

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

ZSSC3230BI3W Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note 'ZSSC3230 PCB Layout Guidelines' (document number R01AN4393EU0100). It's essential to follow these guidelines to ensure optimal performance, especially for noise reduction and thermal management.
  • The ZSSC3230BI3W has an internal calibration mechanism. However, for optimal accuracy, Renesas recommends performing an external calibration using an external voltage reference and a calibration resistor. The calibration procedure is described in the datasheet and application notes.
  • The ZSSC3230BI3W has an operating temperature range of -40°C to 125°C. However, the accuracy and performance of the device may degrade at extreme temperatures. It's essential to consider the thermal management and heat dissipation in the system design.
  • The ZSSC3230BI3W is designed to operate in a variety of environments, including those with high vibration. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • The ZSSC3230BI3W outputs 24-bit digital data. Renesas provides a software development kit (SDK) and application notes that describe how to handle the output data, including data formatting, scaling, and error handling.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZSSC3230BI3W Overview

Use the download button to access the ZSSC3230BI3W schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSSC3, or try a keyword search, such as Other Signal Circuits
