ZSSC3240CC6B - Renesas Electronics

Description: The ZSSC3240 is a sensor signal conditioning IC (SSC) for highly accurate amplification, digitization, and sensor-specific correction of resistive sensor signals. The ZSSC3240 is suitable for bridge and half-bridge sensors, as well as external voltage-source ele­ment and single-element sensors (e.g., Pt100 and external temper­ature sensor diodes) powered by an on-chip current source. Digital compensation of the sensor offset, sensitivity, temperature drift, and non-linearity is accomplished via a 26-bit mat

Download ZSSC3240CC6B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

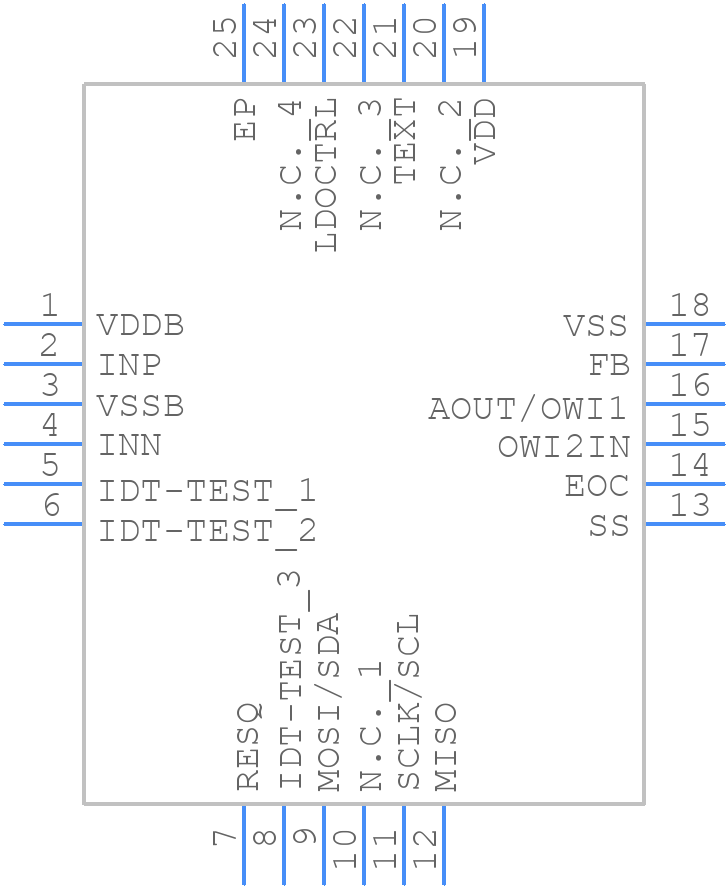

ZSSC3240CC6B - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSSC3240CC6B - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-VFQFPN 4.0 x 4.0 x 0.85 mm Body
click to zoom
3D Models
ZSSC3240CC6B - Renesas Electronics - 3D model - Quad Flat No-Lead - 24-VFQFPN 4.0 x 4.0 x 0.85 mm Body
click to zoom

ZSSC3240CC6B Details

  • Manufacturer Part Number:

    ZSSC3240CC6B

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WAFER

  • Pin Count:

    0

  • Manufacturer Package Code:

    DICE

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Consumer IC Type:

    CONSUMER CIRCUIT

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZSSC3240CC6B Overview

Use the download button to access the ZSSC3240CC6B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSSC3, or try a keyword search, such as Other Signal Circuits
