ZSSC3240CL3R - Renesas Electronics

Description: The ZSSC3240 is a sensor signal conditioning IC (SSC) for highly accurate amplification, digitization, and sensor-specific correction of resistive sensor signals. The ZSSC3240 is suitable for bridge and half-bridge sensors, as well as external voltage-source ele­ment and single-element sensors (e.g., Pt100 and external temper­ature sensor diodes) powered by an on-chip current source. Digital compensation of the sensor offset, sensitivity, temperature drift, and non-linearity is accomplished via a 26-bit mat

Download ZSSC3240CL3R Model

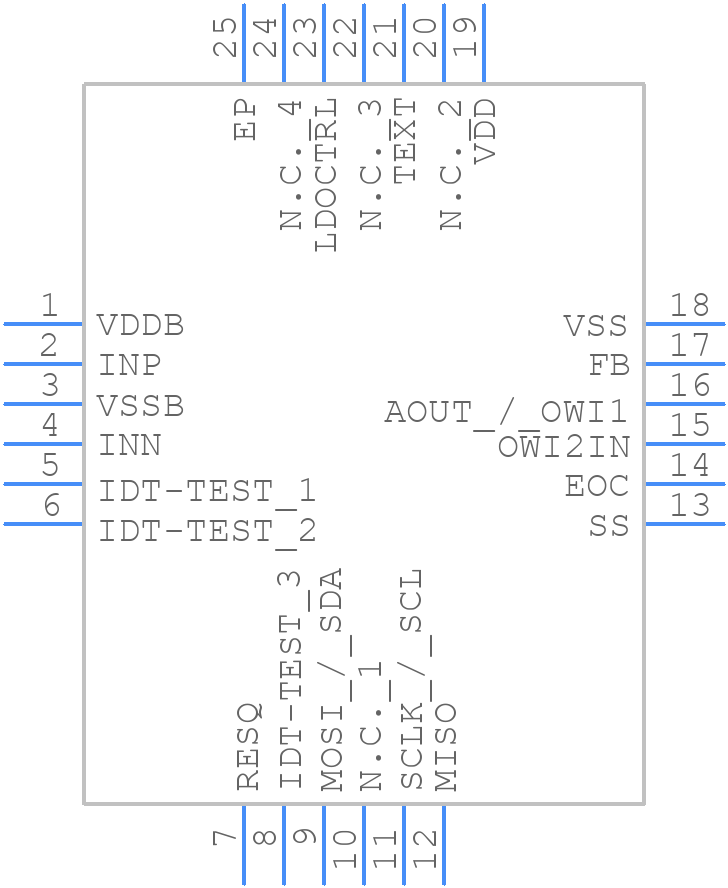

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ZSSC3240CL3R - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 4.0 x 4.0 x 0.85 mm Body,0.50mm
click to zoom
3D Models
ZSSC3240CL3R - Renesas Electronics  - 3D model - Quad Flat No-Lead - 4.0 x 4.0 x 0.85 mm Body,0.50mm
click to zoom

ZSSC3240CL3R Details

  • Manufacturer Part Number:

    ZSSC3240CL3R

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    24

  • Manufacturer Package Code:

    NLG24S1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Consumer IC Type:

    CONSUMER CIRCUIT

ZSSC3240CL3R Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN19275, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ZSSC3240CL3R requires a one-time calibration process to ensure accurate temperature measurement. Renesas provides a calibration procedure in their application note AN19276, which involves measuring the device's output voltage at multiple temperature points and calculating the calibration coefficients.
  • The maximum cable length for the digital interface (I2C or SPI) depends on the specific application and the signal integrity requirements. As a general guideline, Renesas recommends keeping the cable length below 10 inches (25 cm) to ensure reliable communication. For longer cable lengths, signal repeaters or buffers may be necessary.
  • Thermal gradients and thermal shock can affect the accuracy and reliability of the ZSSC3240CL3R. Renesas recommends using thermal interface materials (TIMs) to minimize thermal resistance, and designing the system to minimize thermal gradients and shock. Additionally, the device's thermal protection features can be enabled to prevent damage from excessive temperatures.
  • Renesas recommends a specific power-up sequence to ensure proper device operation. The sequence involves powering up the VCC supply first, followed by the VIO supply, and then initializing the digital interface. This sequence helps prevent latch-up and ensures reliable operation.
