Description:The ZSSC3241 is a sensor signal conditioning IC (SSC) for highly accurate amplification, digitization, and sensor-specific correction of resistive sensor signals. The ZSSC3241 provides best-in-class sensor-element adaptability, and it is suitable for bridge and half-bridge sensors, as well as external voltage-source element and single-element sensors in multiple configurations. Digital compensation of the sensor offset, sensitivity, temperature drift, and non-linearity is accomplished via a 26-bit math core
Renesas provides a recommended PCB layout guide in their application note AN19275, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and accuracy.
The ZSSC3241DI3R has an internal calibration mechanism, but it may require additional calibration for specific applications. Renesas provides a calibration guide in their application note AN19276, which includes steps for calibrating the device using an external calibration resistor and a calibration routine.
The ZSSC3241DI3R has an operating temperature range of -40°C to 125°C, but it's recommended to derate the device's accuracy and performance at extreme temperatures. Consult the datasheet and application notes for more information on temperature-related specifications.
The ZSSC3241DI3R is designed to be robust against vibrations, but it's essential to follow proper mounting and soldering techniques to ensure reliable operation. Renesas provides guidelines for vibration testing and mounting in their application note AN19277.
Renesas provides a troubleshooting guide in their application note AN19278, which covers common issues such as incorrect readings, noise, and communication errors. The guide includes steps for identifying and resolving these issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZSSC3241DI3R Overview

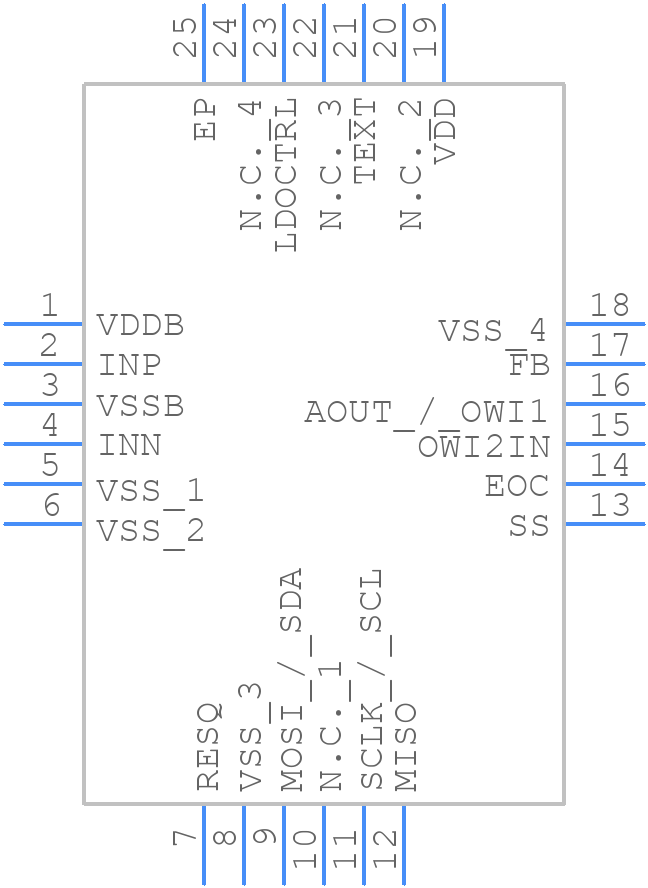

Use the download button to access the ZSSC3241DI3R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSSC3,
or try a keyword search, such as Other Signal Circuits
