ZSSC3241DI3W - Renesas Electronics

Description: The ZSSC3241 is a sensor signal conditioning IC (SSC) for highly accurate amplification, digitization, and sensor-specific correction of resistive sensor signals. The ZSSC3241 provides best-in-class sensor-element adaptability, and it is suitable for bridge and half-bridge sensors, as well as external voltage-source element and single-element sensors in multiple configurations. Digital compensation of the sensor offset, sensitivity, temperature drift, and non-linearity is accomplished via a 26-bit math core

Download ZSSC3241DI3W Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

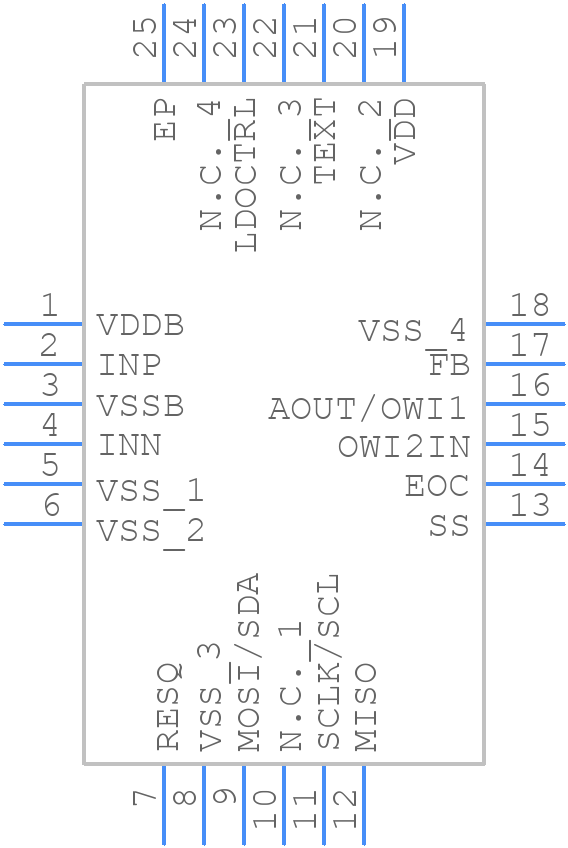

ZSSC3241DI3W - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSSC3241DI3W - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG24-ren2
click to zoom
3D Models
ZSSC3241DI3W - Renesas Electronics - 3D model - Quad Flat No-Lead - NLG24-ren2
click to zoom

ZSSC3241DI3W Details

  • Manufacturer Part Number:

    ZSSC3241DI3W

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    TIN

ZSSC3241DI3W Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital sections separate, and use a ferrite bead or a 10uF capacitor to filter the power supply.
  • Calibration involves trimming the internal voltage reference and the ADC gain. Use the provided calibration software or follow the calibration procedure outlined in the application note to achieve optimal accuracy.
  • The maximum allowed ambient temperature for the ZSSC3241DI3W is 125°C. However, the device can operate up to 150°C with reduced accuracy and reliability.
  • Yes, the ZSSC3241DI3W is designed to operate in humid environments. However, it's essential to follow proper PCB design and assembly guidelines to prevent moisture-related issues.
  • Follow proper PCB design and layout guidelines, use a metal shield or a Faraday cage to enclose the device, and ensure proper grounding and decoupling to minimize electromagnetic interference.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZSSC3241DI3W Overview

Use the download button to access the ZSSC3241DI3W schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSSC3, or try a keyword search, such as Other Signal Circuits
