Description:The ZSSC3281 is a dual path sensor signal conditioning IC (SSC) for highly accurate amplification, digitization, and sensor-specific correction of sensor signals. The ZSSC3281 is suitable for bridge and half-bridge sensors, as well as external voltage-source element and single-element sensors (for example, Pt100 and external temperature sensor diodes) powered by an on-chip current source. Digital compensation of the sensor offset, sensitivity, temperature drift, and non-linearity is accomplished via a 32-bi
Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and accuracy of the sensor.
Calibration of the ZSSC3281BI3R typically involves a one-time process of writing calibration coefficients to the device's internal registers. Renesas provides a calibration guide in their application note AN1964, which includes step-by-step instructions and software tools for calibration.
The ZSSC3281BI3R is rated for operation from -40°C to 125°C, but the accuracy and performance of the sensor may degrade at extreme temperatures. It's recommended to consult the datasheet and application notes for specific temperature-related performance characteristics.
The ZSSC3281BI3R is not hermetically sealed and is sensitive to moisture. Renesas recommends using the device in a dry, clean environment, and taking precautions to prevent moisture ingress, such as conformal coating or potting.
The typical current consumption of the ZSSC3281BI3R is around 1.5mA, but this can vary depending on the operating mode, sampling rate, and other factors. Consult the datasheet for specific power consumption characteristics.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZSSC3281BI3R Overview

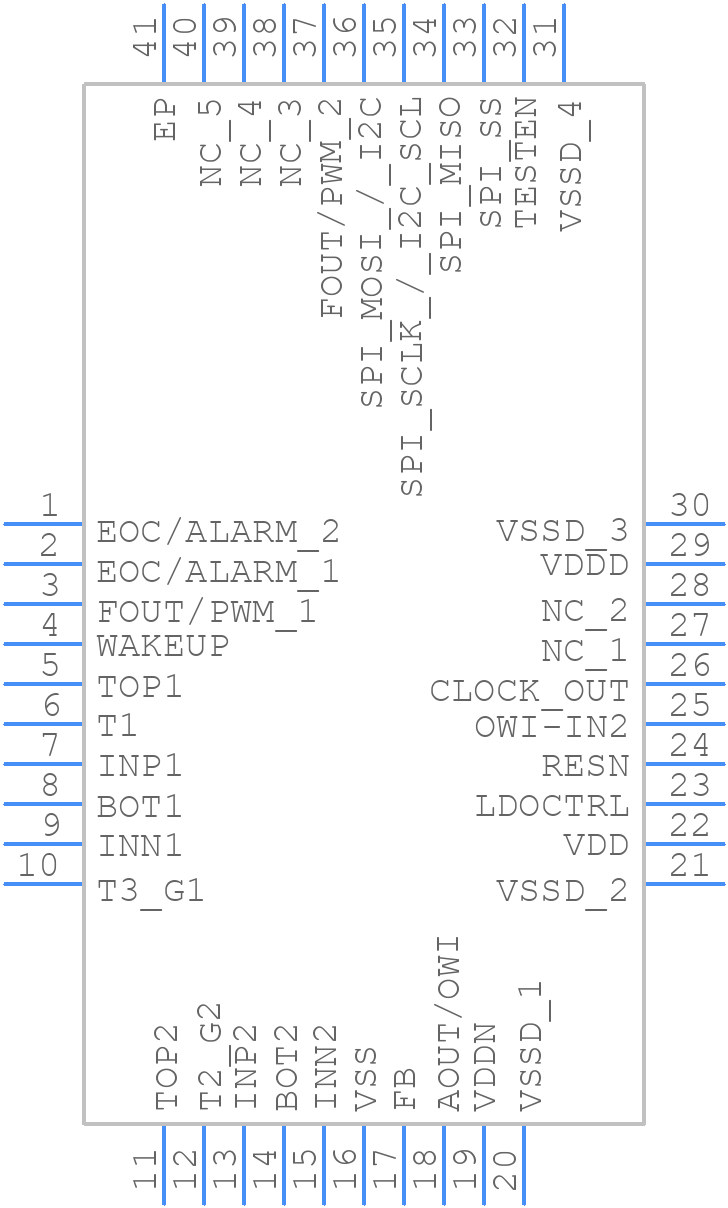

Use the download button to access the ZSSC3281BI3R schematic symbol, PCB footprint, and 3D model.
